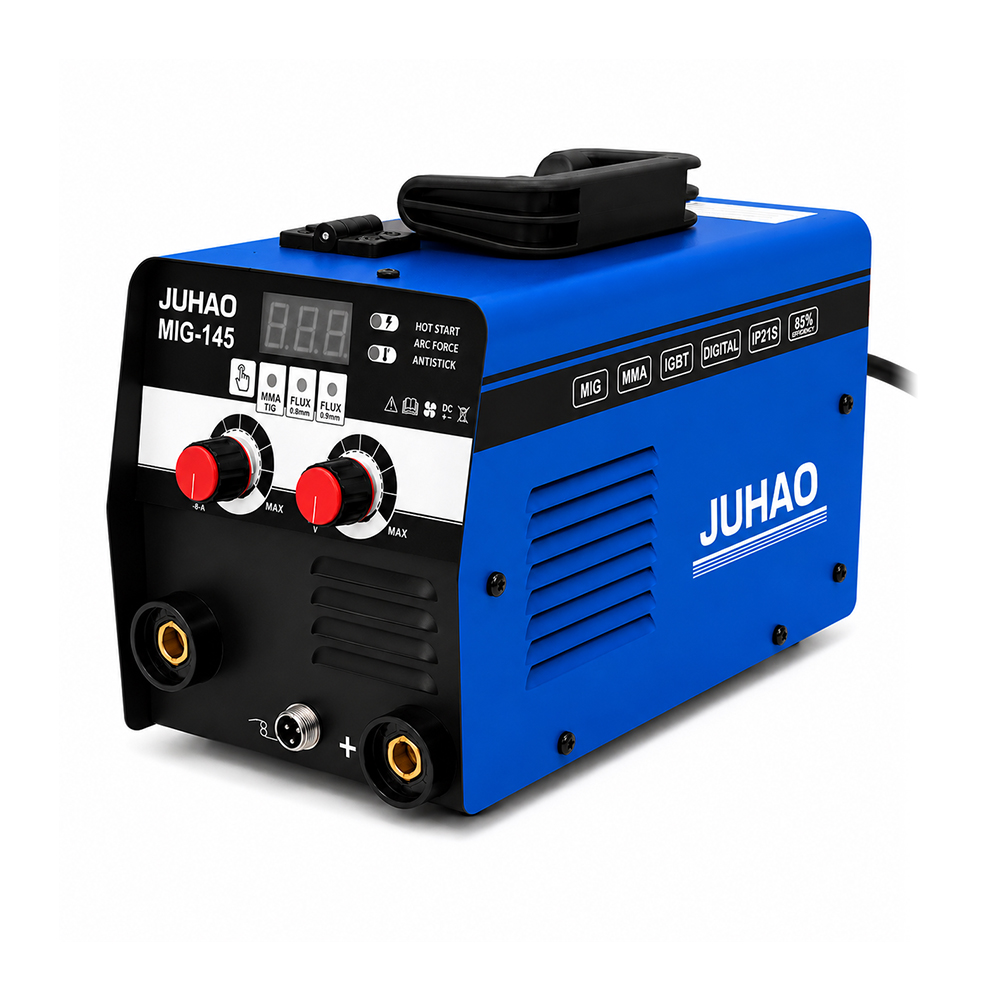

110V 3-in-1 Flux Core MIG, TIG & MMA Welder, 120A, Only 2.85kg
☑ 3-in-1 Multi-Process Capability
Supports Flux Core MIG, TIG and MMA welding functions in one compact machine.
☑ Ultra-Lightweight Portable Design
Weighing only 2.85kg, the machine is easy to carry and ideal for home, workshop and field applications.

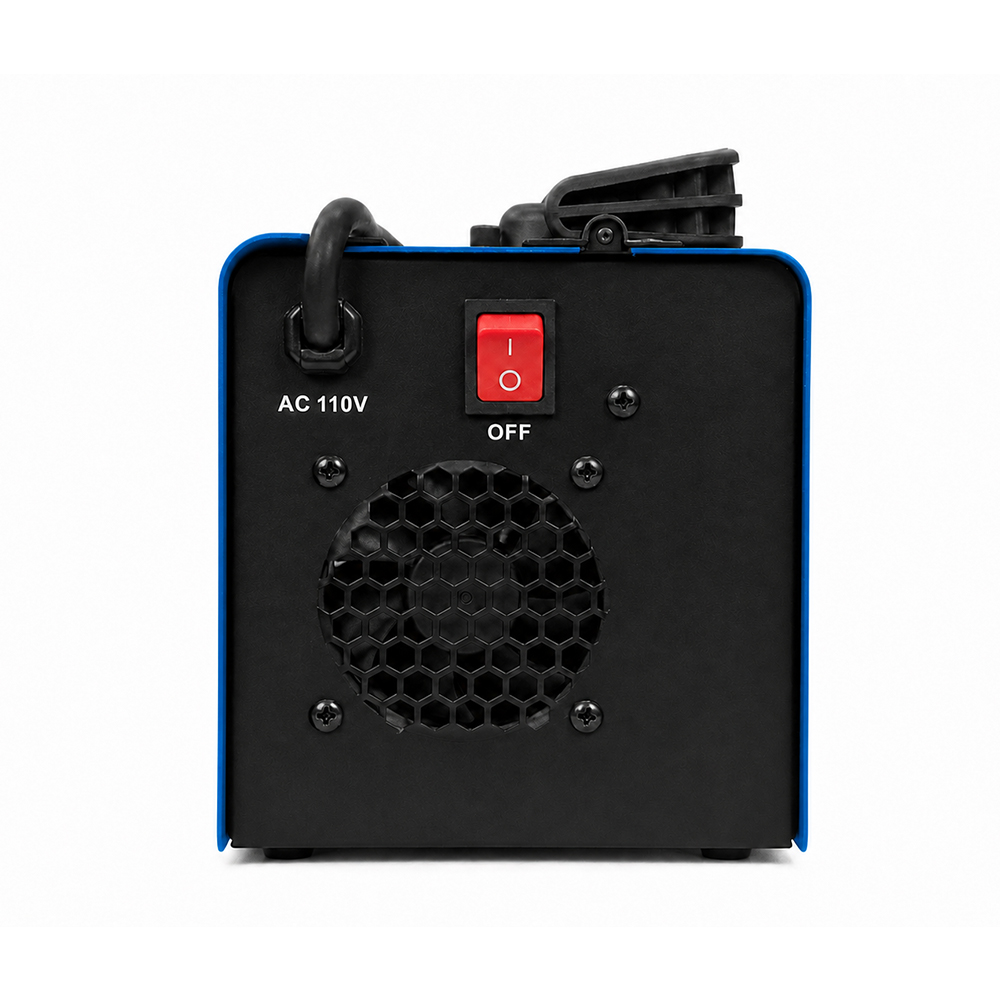

☑ Standard 110V Household Power
Runs on standard 110V household outlets without requiring industrial power.
☑ Advanced IGBT Inverter Technology
Provides stable arc performance, smooth welding operation and improved efficiency.
☑ Compact Yet Powerful 120A Output
Delivers up to 120A welding output for home repair, maintenance and light fabrication work.
☑ Gasless Flux Core Welding Ready
Supports flux core welding without shielding gas, making it convenient for outdoor and mobile applications.

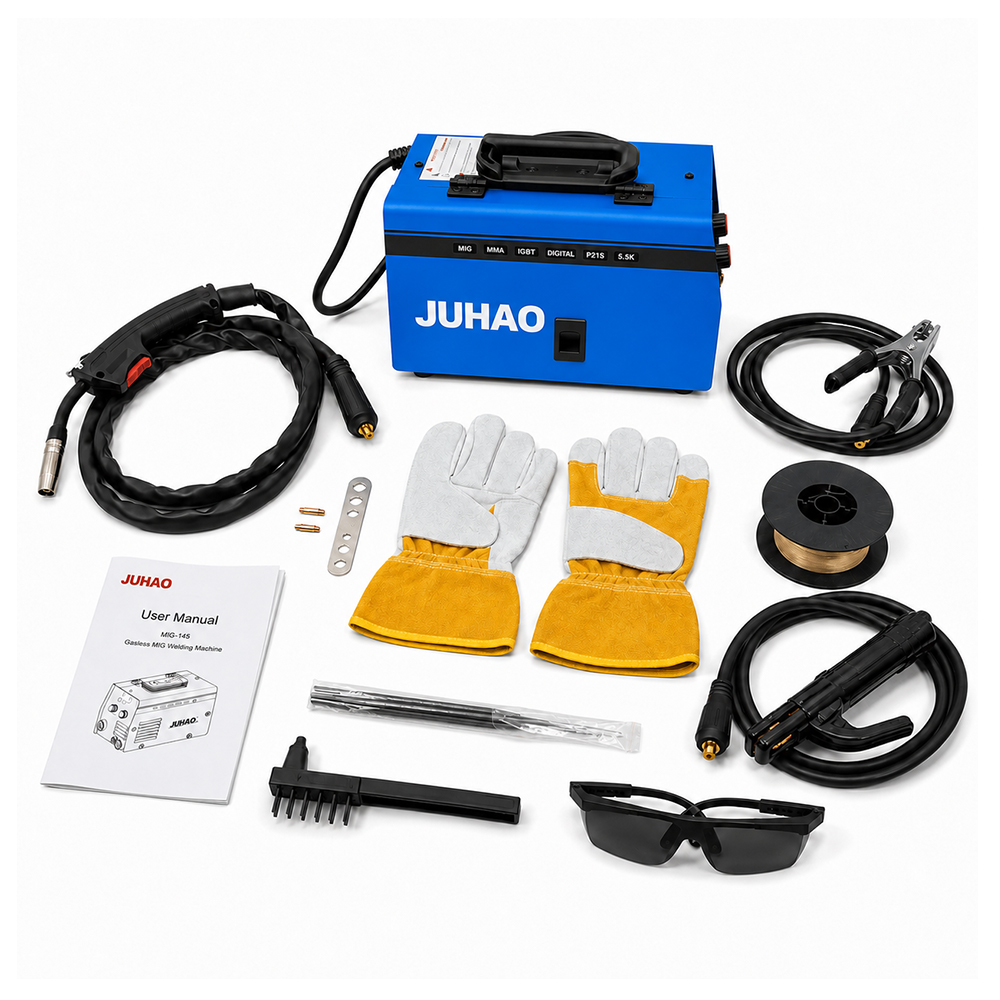

List of Accessories
✓ 1 Piece 2M Ground Clamp Cable
✓ 1 Piece 2M 14AK MIG Torch
✓ 1 Piece 1.8M 200A Electrode Holder Cable
✓ 1 Piece 0.8MM Welding Wire
✓ 1 Piece Steel Brush
✓ 1 Piece Safety Glasses
✓ 1 Piece Welding Gloves
✓ 5 Piece 2.5MM Welding Rod
✓ 1 Set Accessories
Machine Type | MIG WELDER |
Function | FLUX CORE MIG, TIG, MMA |
Input Voltage / Frequency | 110V 50HZ/60HZ |
Rated Input Current | FLUX CORE MIG 44A/ TIG 33A / MMA 53A |
Output Current | 20-120A |
Rated Duty Cycle | 40℃ 20% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 65V |
Usable Electrode/Wire Diameter | Electrode: 2.0-3.2MM Wire: 0.8-0.9MM |
Welding Thickness Range | 0.3-5MM |
Insulation & Protection Class | F |
Machine Dimensions | 280*150*220MM |
Package Dimensions | 370*185*305MM |
Net Weight | 2.85KG |
Gross Weight | 6KG |
Q1. What welding processes does this machine support?
A1. It supports Flux Core MIG (gasless), TIG and MMA (stick) welding, providing three welding functions in one compact machine.
Q2. Can I weld without shielding gas?
A2. Yes. The Flux Core MIG function allows gasless welding, making it ideal for outdoor use and areas where shielding gas is unavailable.
Q3. What power supply does it require?
A3. The machine operates on standard 110V household power, eliminating the need for industrial voltage or special wiring.
Q4. What is the maximum welding output?
A4. It delivers up to 120A welding output on 110V input, suitable for home repair, maintenance and light fabrication applications.
Q5. What is the duty cycle?
A5. The rated duty cycle is 20% at 120A, meaning the machine can weld continuously for 2 minutes within a 10-minute cycle at maximum output.
Q6. What wire sizes are supported?
A6. The machine supports 0.8mm to 0.9mm flux core welding wire.
Q7. What electrode sizes can be used?
A7. It supports 2.0mm to 3.2mm welding electrodes for MMA welding applications.
Q8. What materials can be welded?
A8. It is suitable for welding carbon steel and mild steel used in home repair, maintenance and light fabrication projects.
Q9. Is this machine beginner-friendly?
A9. Yes. Its simple controls, lightweight 2.85kg design and gasless welding capability make it suitable for beginners, hobbyists and DIY users.
Q10. What welding thickness is recommended?
A10. The machine is suitable for welding materials from 0.3mm to 5mm, depending on the material type, welding process and operating conditions.
