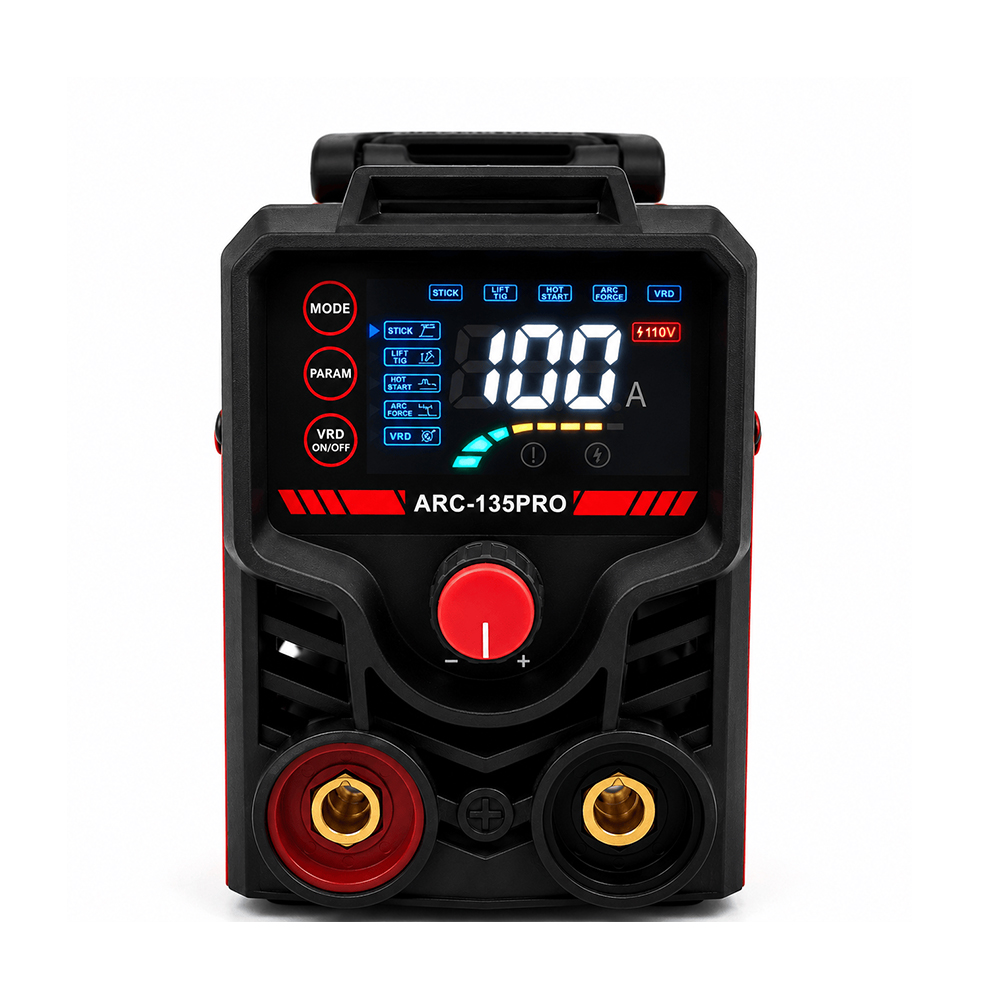

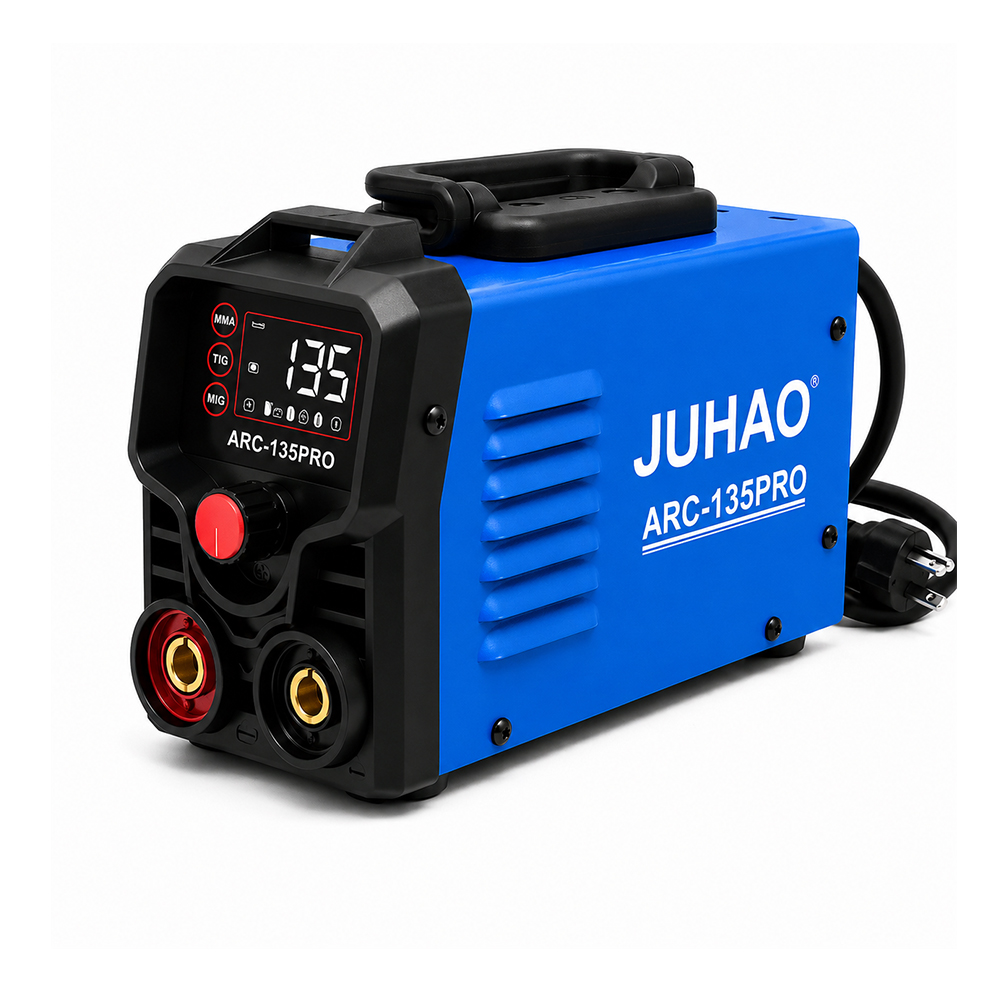

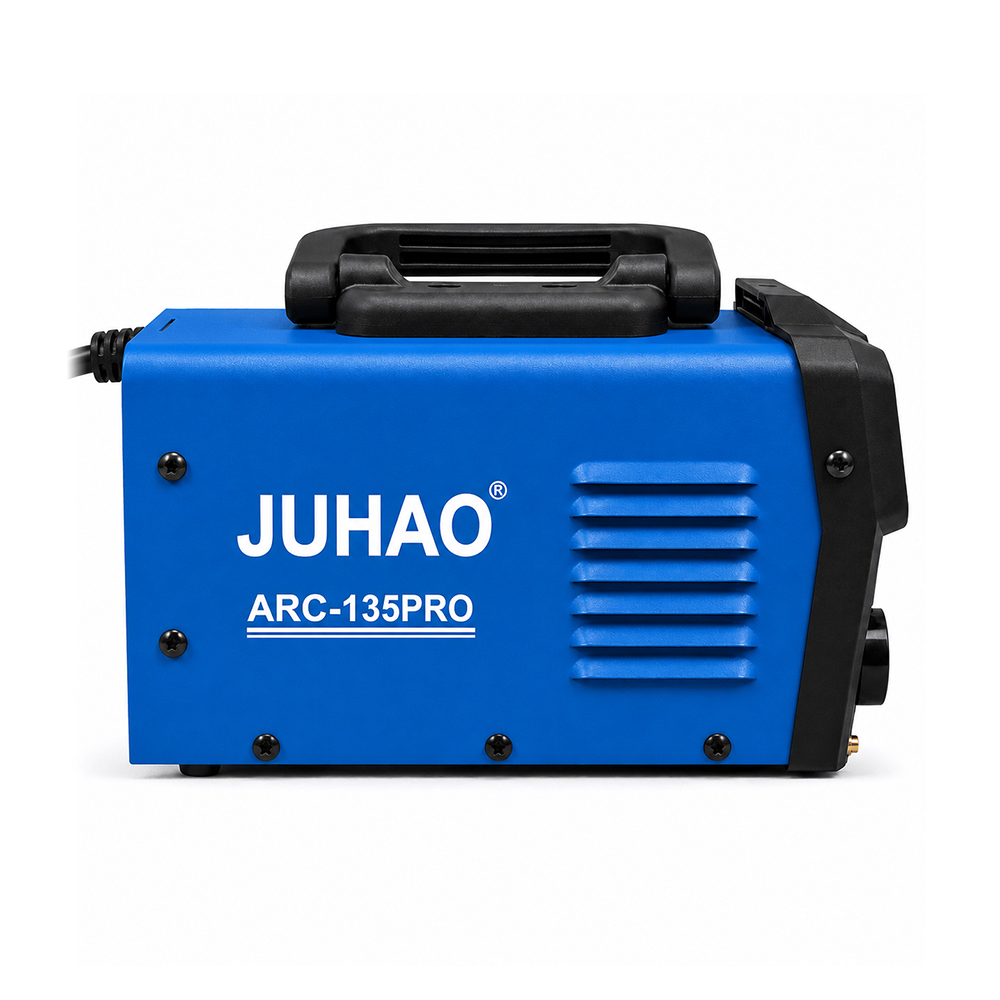

110V MMA & Lift TIG Welder, 120A, Portable 2kg Design
☑ MMA & Lift TIG Welding Capability
Supports both MMA (stick) and Lift TIG welding functions in one compact machine.
☑ Ultra Lightweight & Portable
Weighing only 2kg, the machine is easy to carry for home, workshop and outdoor repair applications..

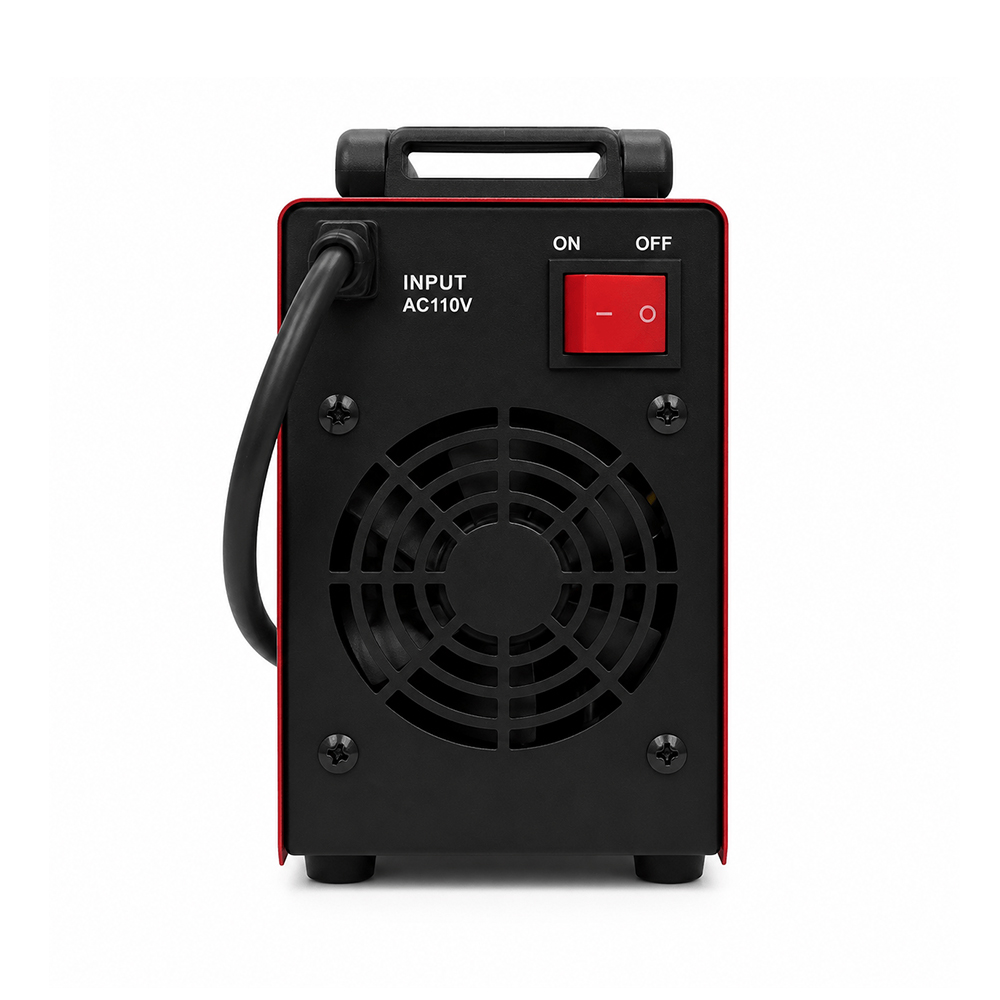

☑ Standard 110V Household Power
Operates on standard 110V household outlets without requiring special wiring.
☑ Advanced IGBT Inverter Technology
Provides stable arc performance, reliable starts and smooth welding operation.
☑ 120A Welding Output
Delivers up to 120A output for home repair, maintenance and light fabrication tasks.
☑ Intelligent digital functions
Equipped with hot start, arc force, anti-stick and VRD to ensure easy starts, stable arcs, electrode saftty and low-voltage protection in one smart package
List of Accessories
✓ 1 Piece 3M 200A Electrode Holder Cable
✓ 1 Piece 2M Ground Clamp Cable
✓ 1 Piece Shoulder Strap
✓ 5 Piece 2.5 Welding Rod
✓ 1 Piece Chipping Hammer
✓ 1 Piece Welding Gloves
Machine Type | MMA, TIG WELDER |
Function | MMA, LIFT TIG |
Input Voltage / Frequency | 110V 50HZ/60HZ |
Rated Input Current | 45A |
Output Current | MMA:30-120A TIG: 10-120A |
Rated Duty Cycle | 40℃ 15% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 65V |
Electrode Diameter | 1.6-3.2MM |
Welding Thickness Range | 0.8-5MM |
Insulation & Protection Class | F |
Machine Dimensions | 230*100*160MM |
Package Dimensions | 320*220*200MM |
Net Weight | 2KG |
Gross Weight | 4.18KG |
Q1. What welding processes does this machine support?
A1. It supports MMA (stick welding) and Lift TIG welding, providing two welding functions in one compact machine.
Q2. What power supply does it need?
A2. It operates on standard 110V household outlets. No special wiring or industrial plug is required.
Q3. What is the maximum welding output?
A3. The maximum output is 120A for both MMA and Lift TIG welding on 110V input.
Q4. What is the duty cycle?
A4. The rated duty cycle is 40℃ 20% at 120A, allowing continuous welding for 2 minutes within a 10-minute cycle at maximum output.
Q5. What electrode (stick) sizes can I use?
A5. It supports 1.6mm to 3.2mm welding electrodes, covering common sizes for home repair and light fabrication work.
Q6. What wire sizes are supported?
A6. The machine supports 0.8-1.2mm welding wire on 220V input and 0.8-1.0mm welding wire on 110V input.
Q7. Can I do TIG welding with this machine?
A7. Yes. It supports Lift TIG welding. A compatible Lift TIG torch with a gas valve is required (not included).
Q8. How portable is this machine?
A8. It weighs only 2kg and includes a shoulder strap, making it easy to carry for home repairs, maintenance and mobile welding tasks.
Q9. Is this machine suitable for beginners?
A9. Yes. Its simple controls, lightweight design and dual welding functions make it suitable for DIY users, hobbyists and beginner welders.
Q10. Do you offer OEM or private label services?
A10. What is the MOQ? Yes, OEM and ODM services are available for brands and volume buyers. MOQ is negotiable – please contact us to discuss your requirements (logo, packaging, quantity, etc.).
