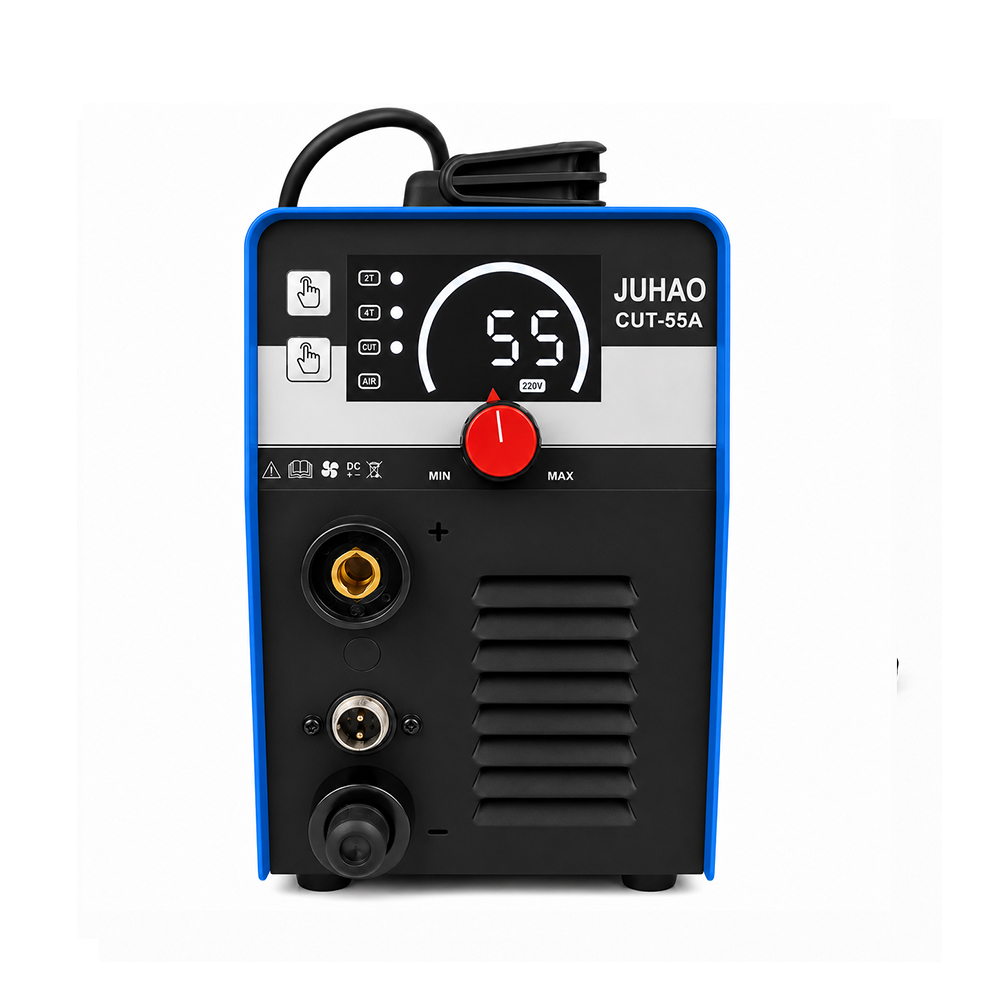

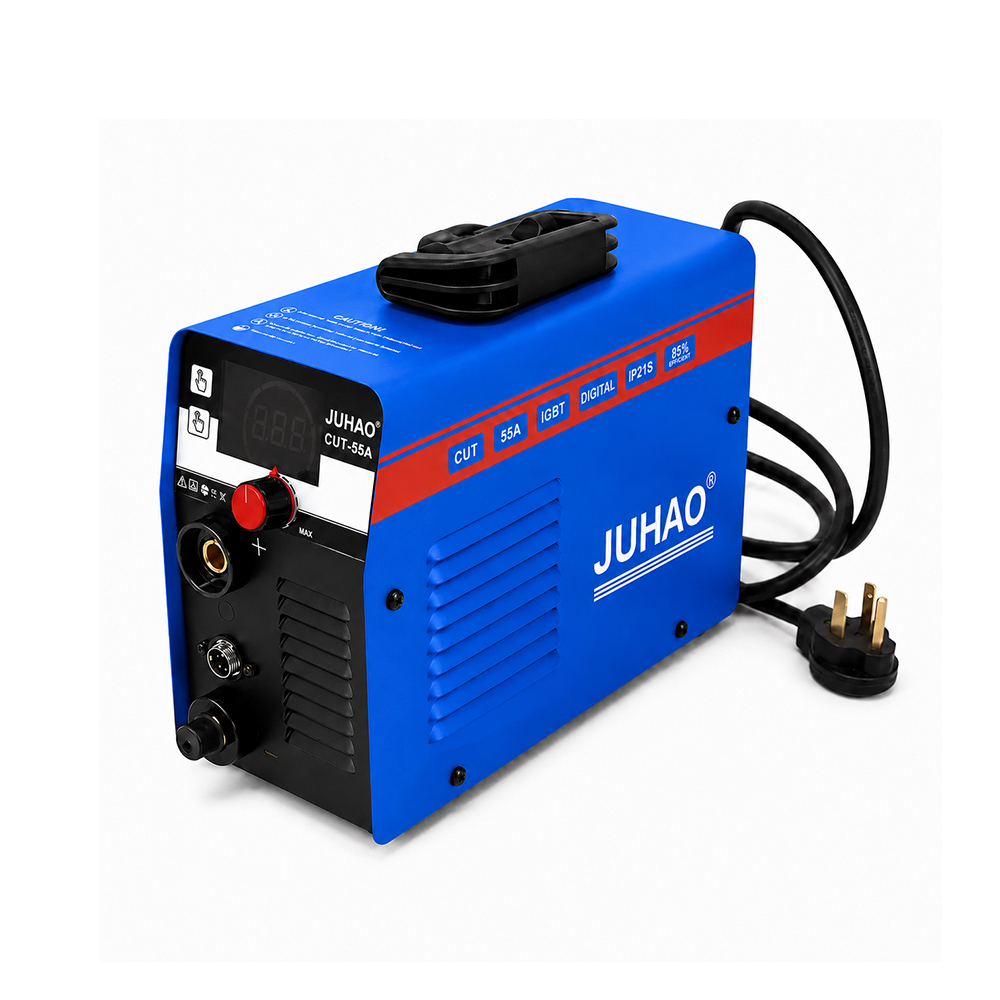

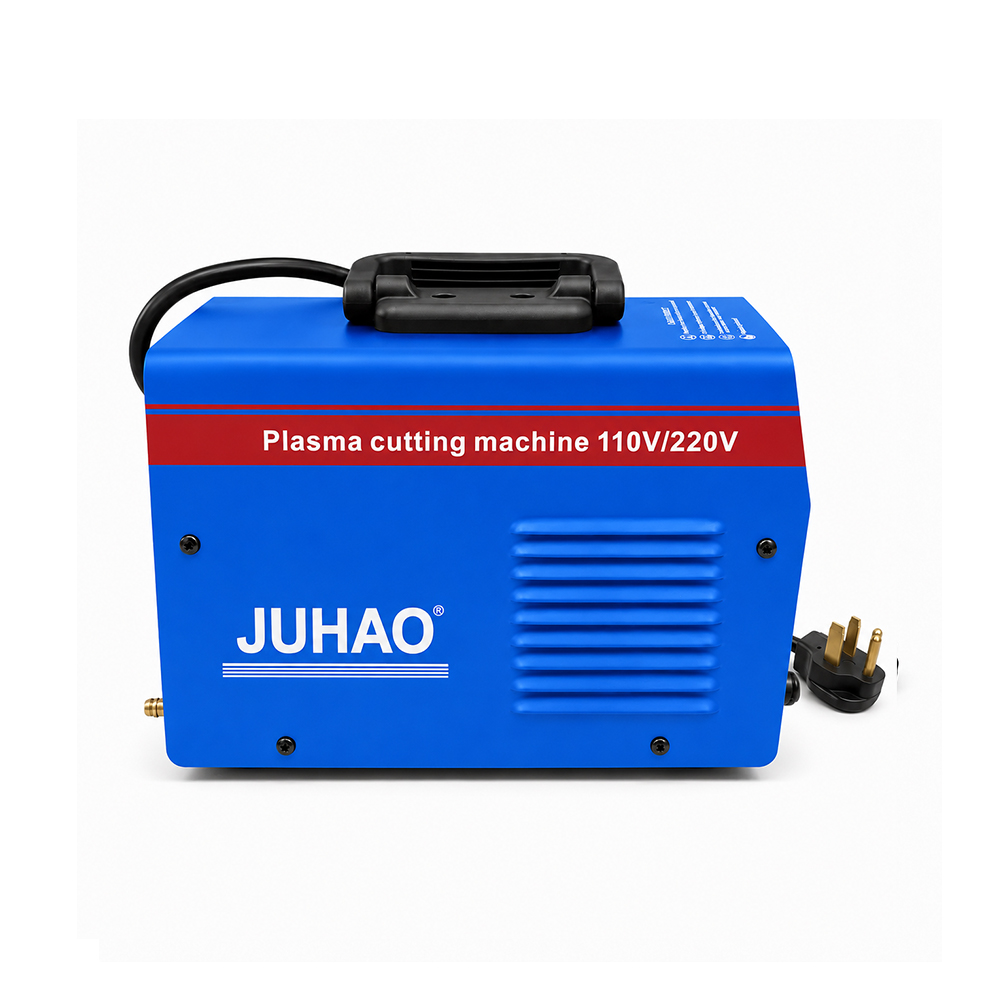

Dual Voltage 110V/220V 40A Plasma Cutter, IGBT Inverter, Cuts Up to 16mm Steel
 | THE COMPLETE MACHINE COMES WITH A ONE-YEAR WARRANTY. |  | FOR EACH SHIPMENT, WE WILL PROVIDE SPARE PARTS FREE OF CHARGE, EQUIVALENT TO 1%–2% OF THE TOTAL ORDER VALUE. |

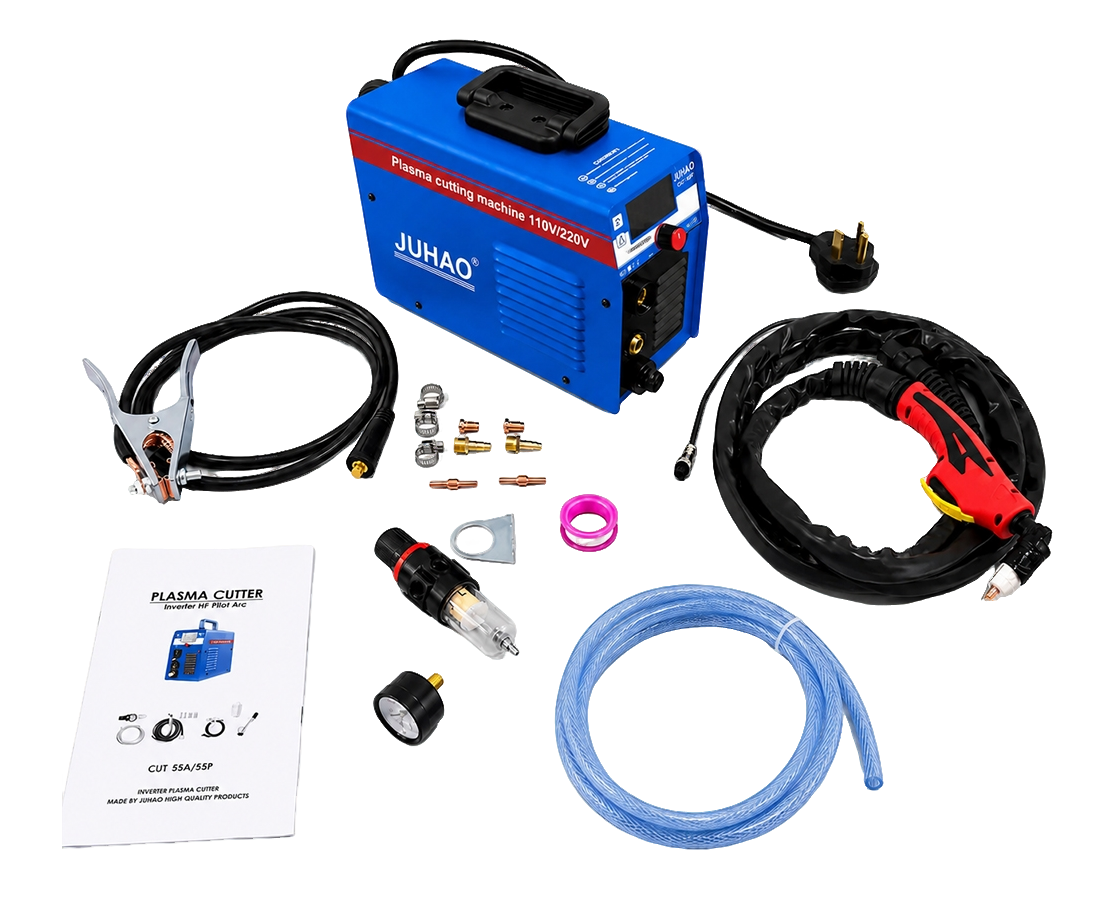

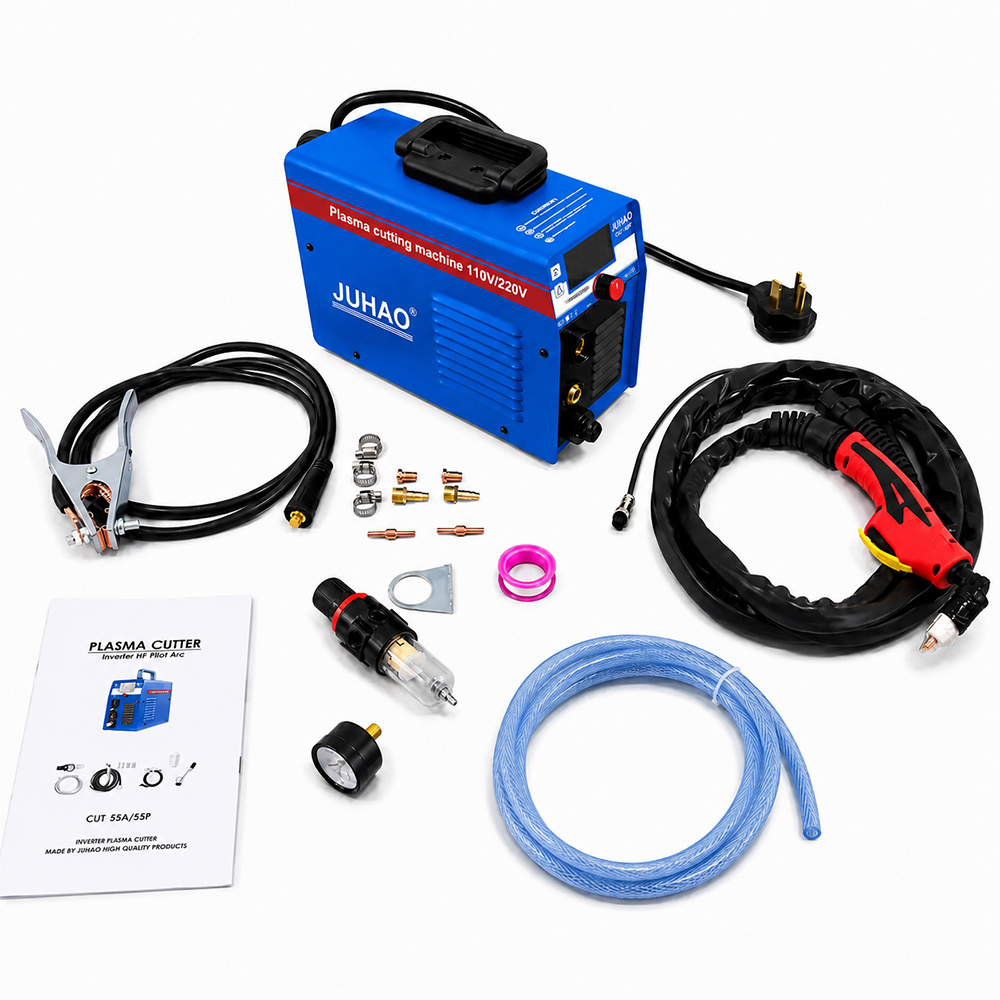

 | ACCESSORIES ☑ 3M PT31 Plasma Cutting Torch x1 ☑ 2M Earth Cable x1 ☑ Electrodes & Cutting Nozzles x2 ☑ Waterproof Tape x1 ☑ Air Pressure Reducing Regulator x1 ☑ Piece 2M Air Hose x1 ☑ Hose Clamps x2 ☑ Small American Connector to Large American Connector x1 |
Machine Type | Plasma Cutting Machine |
Input Voltage / Frequency | 110V / 220V, 50/60HZ |
Rated Input Current | 110V: 98A |
Output Current Range | 110V: 15-30A |
Rated Duty Cycle | 30% |
Inverter Technology | IGBT |
Efficiency | 85% |
No-load Voltage | 280V |
Cutting Thickness Range | 1-18MM |
Insulation & Protection Class | F |
Machine Dimensions | 330*260*120MM |
Package Dimensions | 380*285*210MM |
Net Weight | 3.85KG |
Gross Weight | 6.25KG |
 | ◉ 110/220 V input options Works with either supported voltage for use at different job sites. ◉ 30 A cutting at 110 V and 40 A at 220 V Choose a supported supply to suit the power available and the cutting job. ◉ 3.85 kg machine weight Easy to carry between work areas and take to on-site jobs. |
◉ Contact-start cutting Starts the cut with the torch tip in contact with the workpiece. ◉ 2T/4T trigger modes Use trigger-hold control for short jobs or latched control for longer runs. ◉ Adjustable cutting post-flow Set the airflow after cutting to balance torch cooling and air use. |  |
 | ◉ Overheat and overcurrent protection Helps protect internal components from overheating and excessive current. ◉ PT31 torch, ground cable and air fittings included Simplifies setup with the main cutting connections supplied. ◉ Digital control Cutting parameters can be configured at the factory to suit your requirements. |
Q1. What is the CUT-55A used for? A1. The CUT-55A is designed for plasma cutting conductive metals such as mild steel, stainless steel, aluminum, and copper. It is ideal for fabrication, repair, maintenance, and workshop applications. Q2. What input voltage does it support? A2. The machine supports dual voltage 110V/220V, 50/60Hz, making it suitable for both household and workshop power supplies in different regions. Q3. Can I use this plasma cutter on a standard household outlet? A3. Yes. The CUT-55A can operate on a standard 110V household outlet, delivering up to 30A output. For maximum cutting performance, a 220V power supply is recommended. Q4. How thick can it cut? A4. The machine is rated for cutting conductive metals from 1mm to 18mm thick. Actual cutting performance may vary depending on material type, air pressure, current settings, and operator technique. Q5. Can it cut stainless steel and aluminum? A5. Yes. The CUT-55A is suitable for cutting stainless steel, aluminum, mild steel, copper, and other conductive metals when used with the correct settings and air supply. Q6. Does it use IGBT inverter technology? A6. Yes. Advanced IGBT inverter technology provides stable cutting performance, improved efficiency, and a compact, lightweight machine design. Q7. Does it require an air compressor? A7. Yes. Plasma cutting requires a compressed air supply. The machine must be connected to a suitable air compressor to operate properly. Q8. What accessories are included? A8. The package includes a PT31 cutting torch, ground cable, air hose, regulator, electrode and nozzle set, user manual, and necessary connection accessories. Q9. Is it suitable for automotive repair? A9. Yes. The CUT-55A is well suited for automotive body repair, sheet metal cutting, exhaust work, fabrication projects, and general maintenance applications. Q10. Is this plasma cutter suitable for beginners? A10. Yes. With its lightweight design, dual voltage capability, and simple operation, the CUT-55A is suitable for DIY users, hobbyists, repair shops, and professional metalworkers. |
