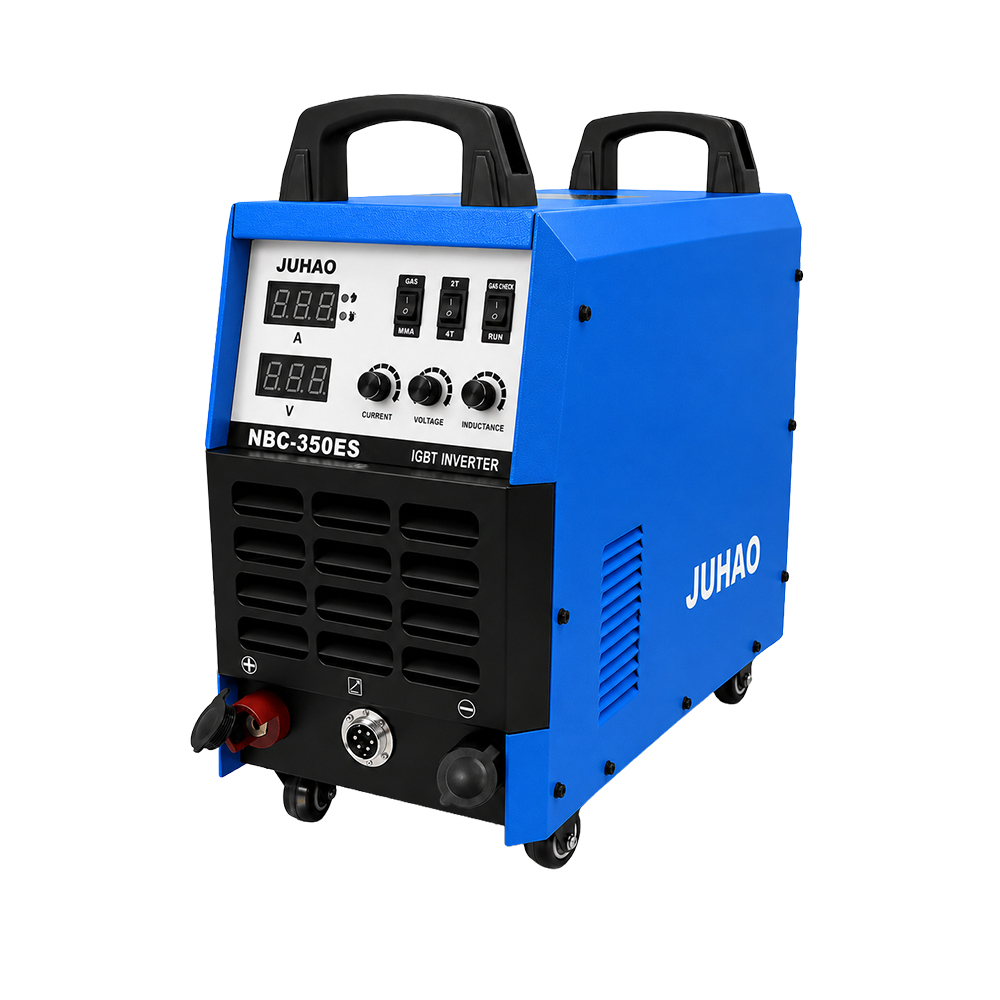

350A MIG/MAG/MMA Welder 380V with Dual-Drive Wire Feeder
☑ Up to 350A Output for Fabrication and Repair
Delivers 30–350A output on 380V power and supports 0.8–1.2mm welding wire and 3.2–5.0mm electrodes. Suitable for fabrication, equipment repair, maintenance, and structural steel applications.
☑ Three Welding Processes in One Machine
Supports MIG, MAG, and MMA welding, allowing users to switch between wire welding and stick welding applications with a single power source.
☑ Dual-Drive Wire Feeder
The dual-drive wire feeding system supports stable wire delivery for 0.8–1.2mm welding wire and helps maintain consistent feeding performance during extended welding operations.
☑ Supports Welding Thicknesses Up to 16mm
Designed for welding applications from 1–16mm, making it suitable for fabrication, construction repair, equipment maintenance, and general industrial work.
☑ 60% Duty Cycle with IGBT Technology
Built with IGBT inverter technology and rated at a 60% duty cycle to support extended welding operations while maintaining stable arc performance.
☑ Designed for Fabrication and Repair Workshops
A practical solution for fabrication shops, equipment repair facilities, farm maintenance, construction projects, and light production environments requiring industrial welding capability.

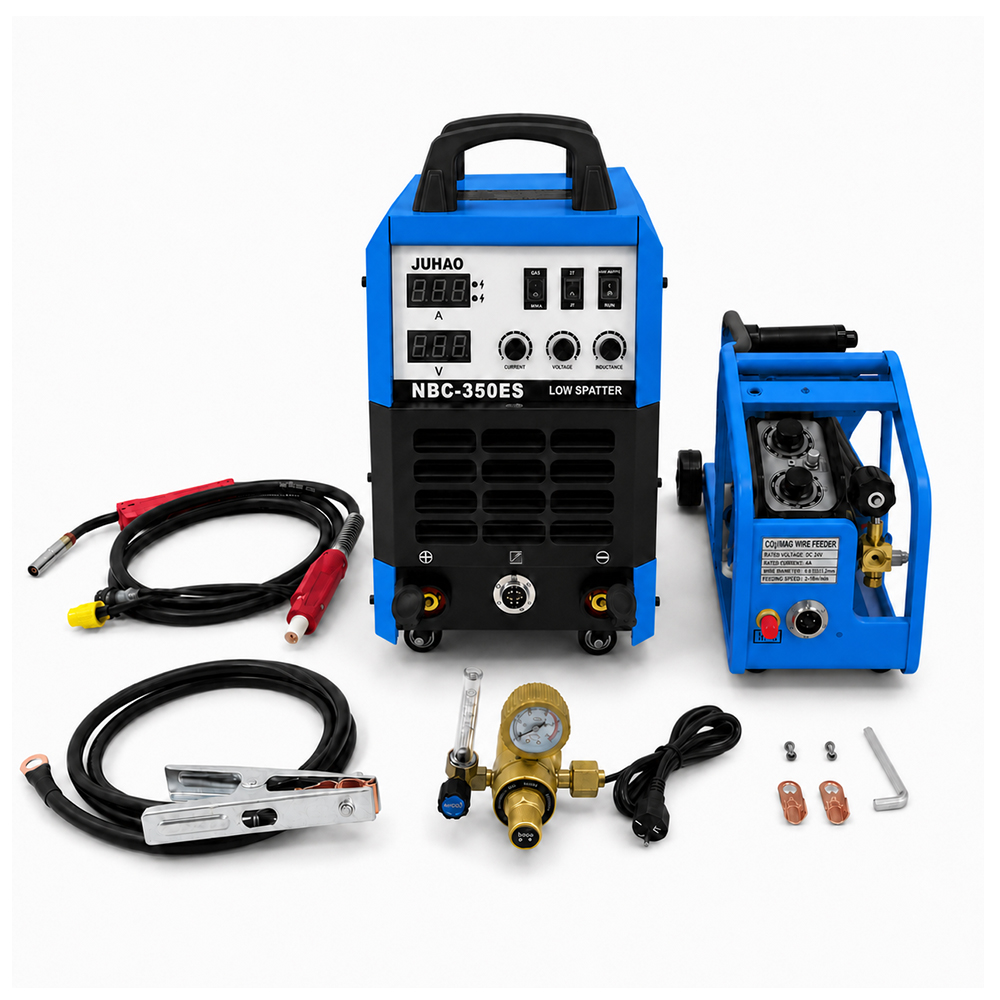

List of Accessories
✓ 1 Piece 2M Ground Clamp Cable
✓ 1 Piece 3M 350A MIG Torch
✓ 1 Piece Dual-drive wire feeder with air hose
✓ 1 Piece CO₂ Heated Regulator
Machine Type | MIG WELDER |
Function | MIG, MMA |
Input Voltage / Frequency | 380V 50HZ/60HZ |
Rated Input Current | 45A |
Output Current | 30-350A |
Rated Duty Cycle | 40℃ 60% |
Inverter Technology | IGBT MODULE |
Efficiency | 85% |
No-load Voltage | 65V |
Electrode Diameter | Electrode: 3.2-5.0MM Wire：0.8-1.2MM |
Welding Thickness Range | 1-30MM |
Insulation & Protection Class | F |
Machine Dimensions | 540*290*500MM |
Package Dimensions | 700*420*670MM |
Net Weight | 28.5KG |
Gross Weight | 35.5KG |
Q1. What welding processes does the NBC-350ES support?
A1. The NBC-350ES supports MIG, MAG, and MMA welding in one machine. This allows users to switch between wire welding and stick welding applications using a single power source.
Q2. What power supply does the NBC-350ES require?
A2. The machine operates on 380V three-phase power at 50/60Hz and is designed for fabrication shops, repair facilities, and industrial welding environments.
Q3. What is the output current range?
A3. The output range is adjustable from 30–350A. It supports 0.8–1.2mm welding wire in MIG/MAG mode and 3.2–5.0mm electrodes in MMA mode.
Q4. What welding thickness can the NBC-350ES handle?
A4. The machine supports welding applications on steel thicknesses from 1–16mm when used with appropriate welding parameters, wire, or electrodes.
Q5. What is the benefit of the dual-drive wire feeder?
A5. The dual-drive wire feeding system helps provide stable wire delivery for 0.8–1.2mm welding wire and supports consistent feeding performance during extended welding operations.
Q6. Does MIG/MAG welding require shielding gas?
A6. Yes. MIG/MAG welding requires a shielding gas such as CO₂ or an Ar/CO₂ gas mixture, depending on the welding wire and application.
Q7. Does MMA welding require shielding gas?
A7. No. MMA stick welding uses flux-coated electrodes and does not require shielding gas, making it suitable for outdoor repair and maintenance applications.
Q8. What are the duty cycle and key technical features?
A8. The NBC-350ES features IGBT inverter technology, a 60% duty cycle, a no-load voltage of 65V, insulation class F, and efficiency of up to 85%.
Q9. What accessories are included?
A9. The standard package includes welding accessories required for operation. Please confirm the exact package contents with your supplier before ordering.
Q10. What applications is the NBC-350ES best suited for?
A10. The NBC-350ES is suitable for metal fabrication, equipment repair, construction projects, farm maintenance, and light production welding environments requiring MIG/MAG and MMA welding capability.
