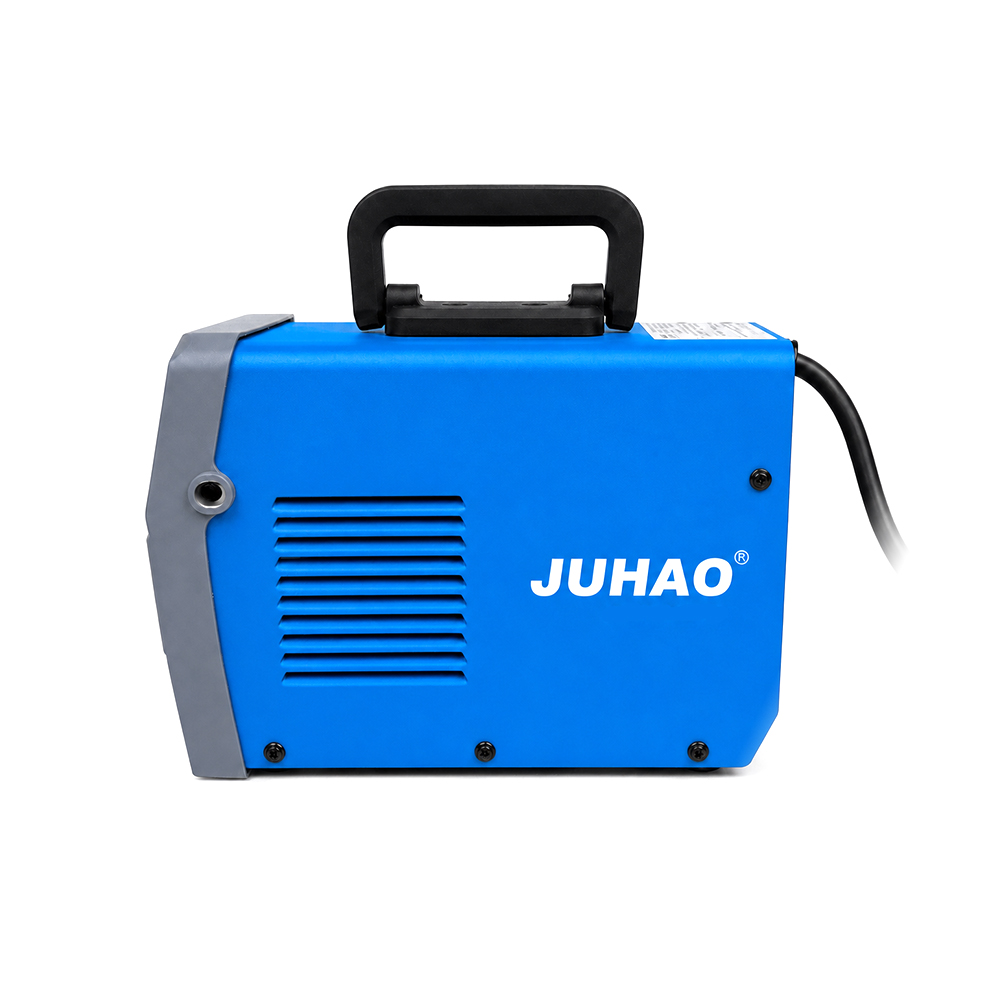

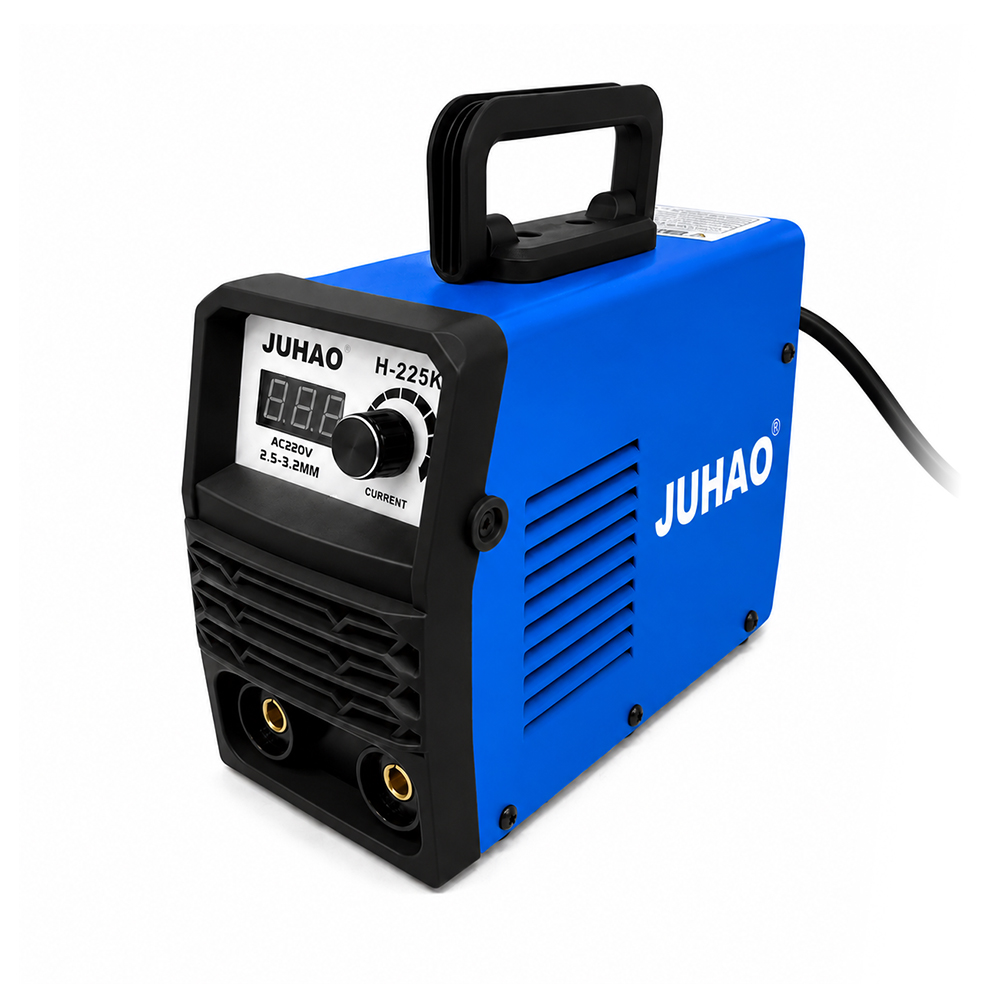

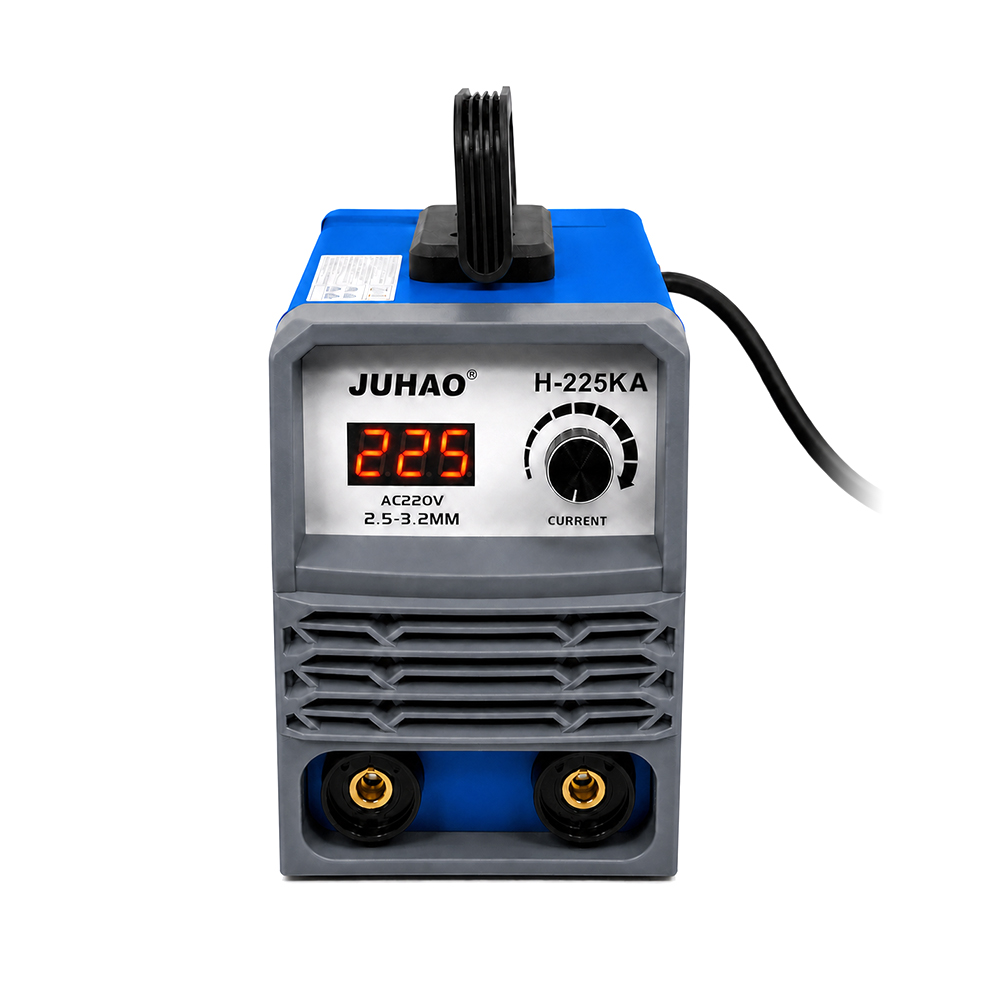

220V 140A MMA Stick Welder, 220V Portable IGBT Arc Welding Machine

ACCESSORIES

☑ 2M Ground Clamp Cable x1

☑ 3M 200A Electrode Holder Cable x1

◉ 30–140 A adjustable MMA output

Lets you match the welding current to the electrode and the task.

◉ Hot start and anti-stick

Makes arc starting easier and helps reduce interruptions caused by electrode sticking.

◉ Digital control

Allows factory configuration of welding parameters to meet customer requirements.

◉ 2.8 kg machine weight

Makes the unit easy to carry for repairs and mobile welding jobs.

◉ Compact molded plastic housing

Makes the machine convenient to position and store in limited spaces.

◉ Reinforced carry handle

Provides a comfortable grip and durable support when moving the machine.

◉ Overheat and overcurrent protection

Helps protect internal components during abnormal operating conditions.

◉ Acid-coated and basic-coated electrode compatibility

Gives you more consumable options for different welding jobs.

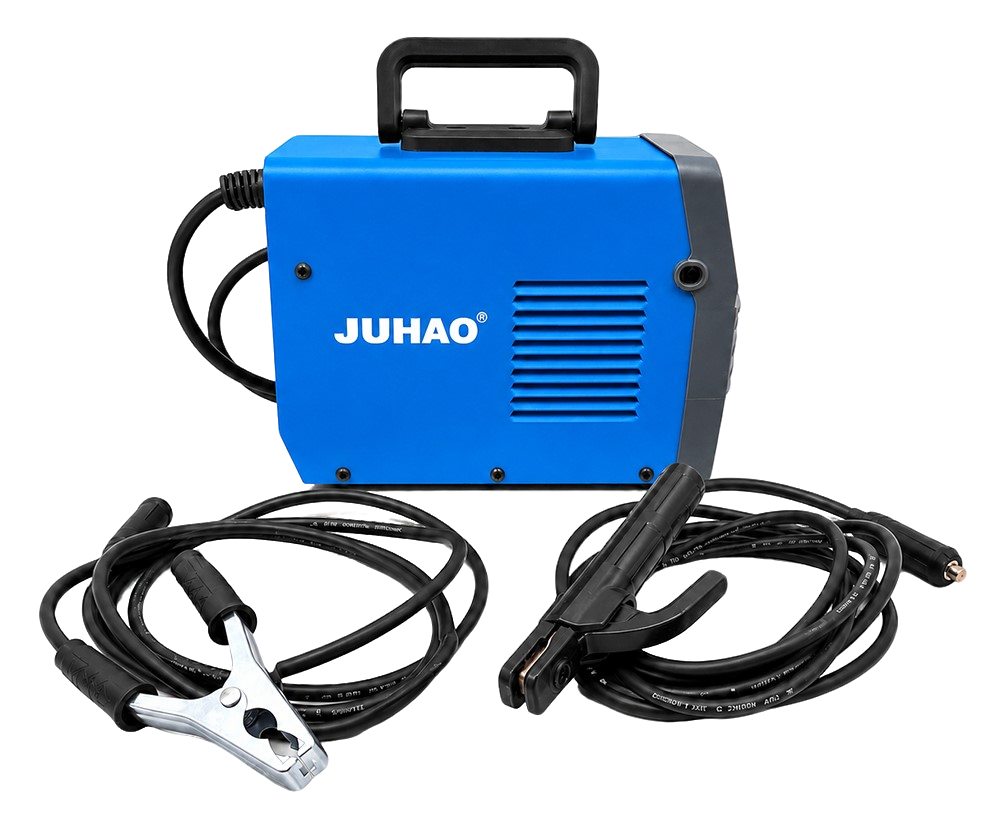

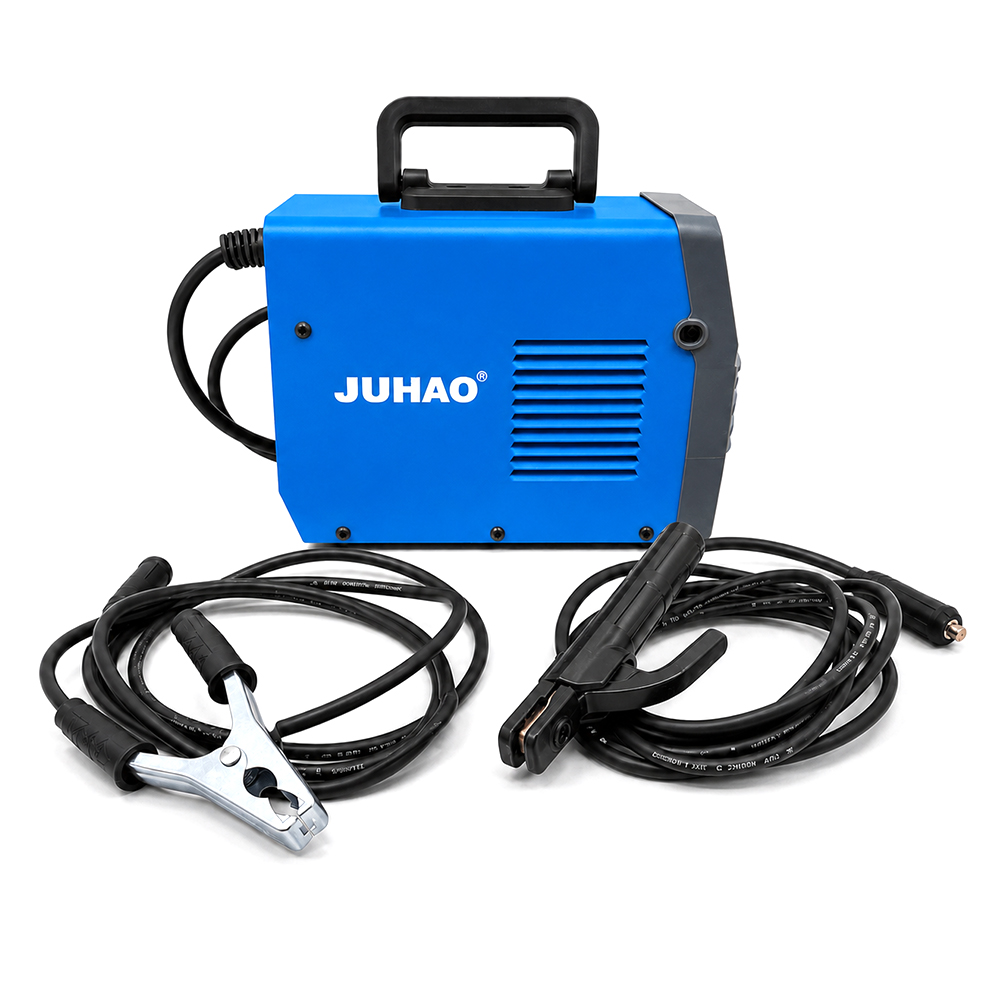

◉ 3 m electrode cable and 2 m ground cable included

Provides practical reach around the work area and reduces separate cable sourcing.

Q1. What is the H-225KA140 best used for?

A1. The H-225KA140 is designed for light MMA stick welding jobs such as home repair, garage projects, farm maintenance, gate repair, brackets, small frames, and general steel repair work.

Q2. What input voltage does this welding machine require?

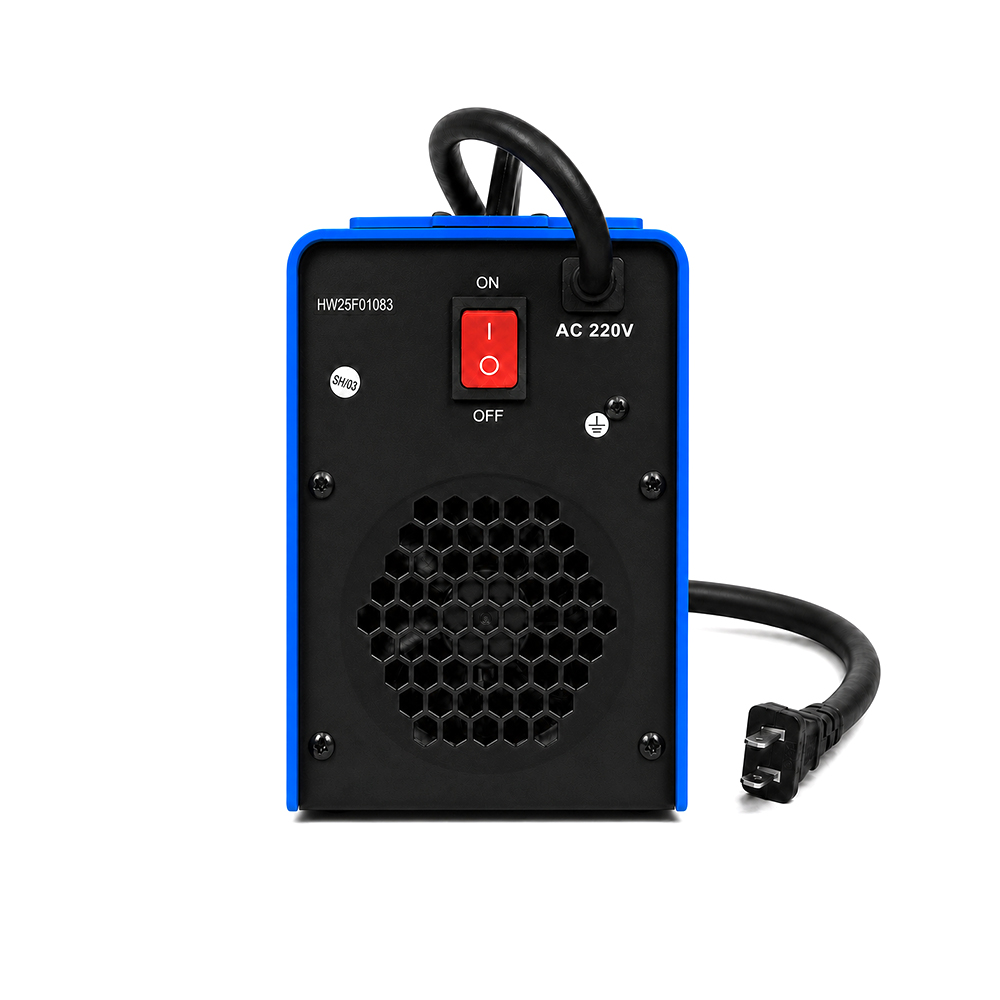

A2. It operates on 220V 50/60Hz input power, which makes it suitable for many home workshops, repair shops, and 220V market regions.

Q3. What is the welding current range?

A3. The machine provides a 30-140A output current range, giving users enough control for thin steel repair, maintenance tasks, and light fabrication applications.

Q4. What electrode sizes can it use?

A4. The recommended electrode range is 2.5-3.2mm, covering common stick electrodes used by DIY users, repair technicians, and small workshop welders.

Q5. What material thickness can it weld?

A5. The listed welding thickness range is 0.8-5mm. Actual performance depends on electrode type, current setting, joint preparation, and operator technique.

Q6. Does this MMA welder need shielding gas?

A6. No. MMA stick welding uses coated electrodes, so it does not require external shielding gas. This makes it convenient for outdoor repair and mobile maintenance work.

Q7. Is it easy to carry?

A7. Yes. With a listed net weight of about 2.8kg, the machine is compact enough for users who need to move between a garage, farm, workshop, or jobsite.

Q8. What accessories are included?

A8. The accessory set includes a 3m 200A 16mm² electrode holder cable and a 2m ground cable, which covers the basic cable setup for stick welding.

Q9. Who should choose this model?

A9. It is a good fit for homeowners, hobby welders, farmers, garage users, small repair shops, and buyers looking for an affordable portable arc welder.

Q10. Can this model be sold for OEM or private label projects?

A10. Yes. It is suitable for OEM and private label sales because the compact size, common 220V input, and entry-level welding range match high-demand retail and distributor categories.
