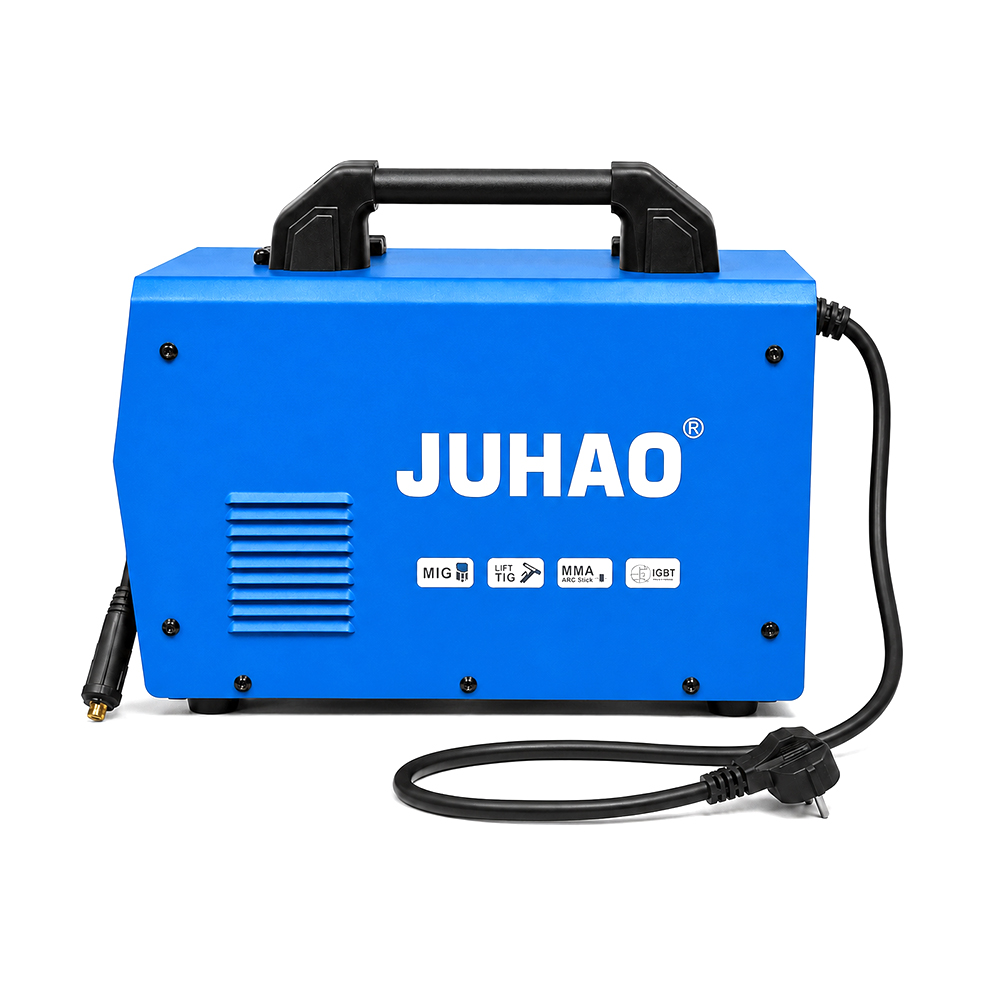

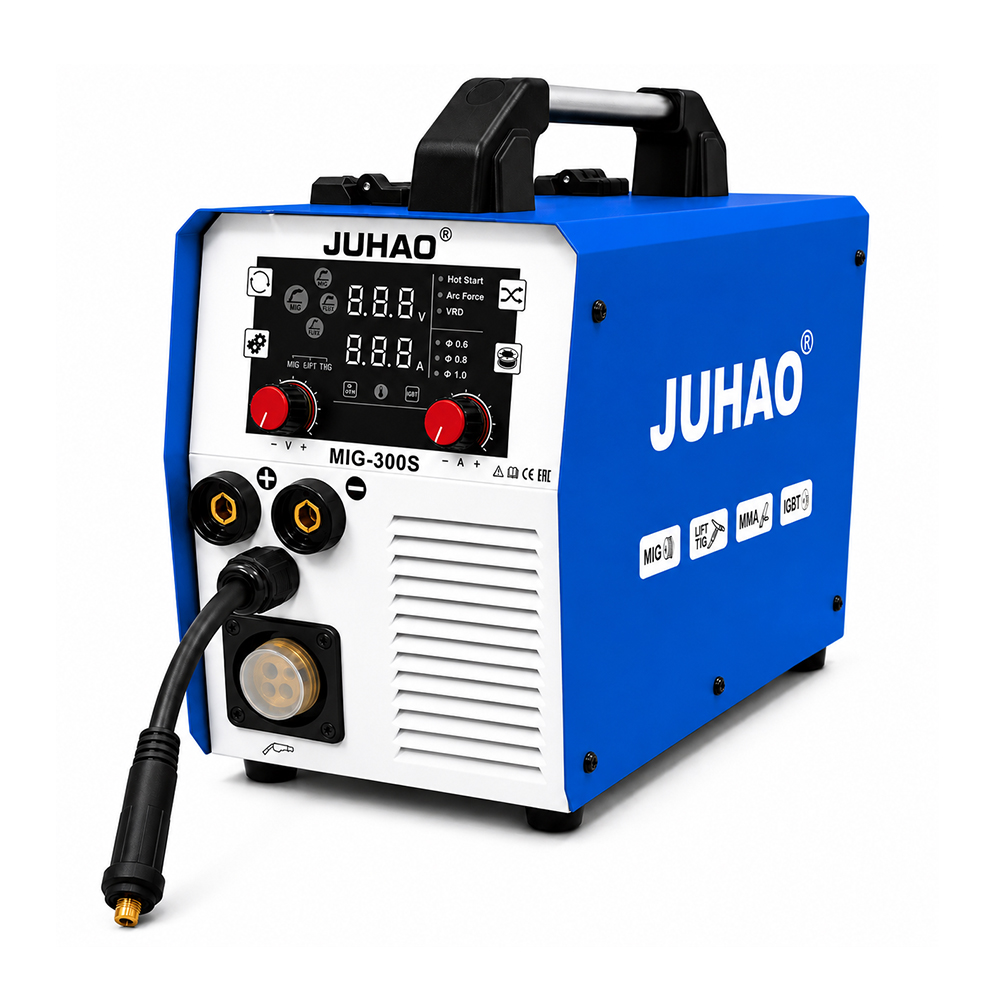

220V 200A 3-in-1 Welder with Gas MIG, Flux Core MIG, TIG & MMA, 60% Duty Cycle
☑ Multi-Process Welding Capability
Supports Gas MIG, Flux Core MIG, Lift TIG and MMA welding applications in one versatile machine.
☑ Powerful 200A Output
Provides up to 200A MIG/TIG output and 180A MMA output for fabrication, repair and maintenance applications.
☑ 60% Duty Cycle
Allows longer continuous welding time and improved productivity during demanding welding tasks.
☑ Advanced IGBT Inverter Technology
Ensures stable arc performance, reduced spatter and improved energy efficiency.
☑ Wide Application Range
Suitable for welding materials from 0.3mm to 10mm, covering maintenance, fabrication and workshop projects.
☑ Compact & Portable Design
Weighing only 7.25kg, the machine is easy to transport and ideal for workshop or field use.

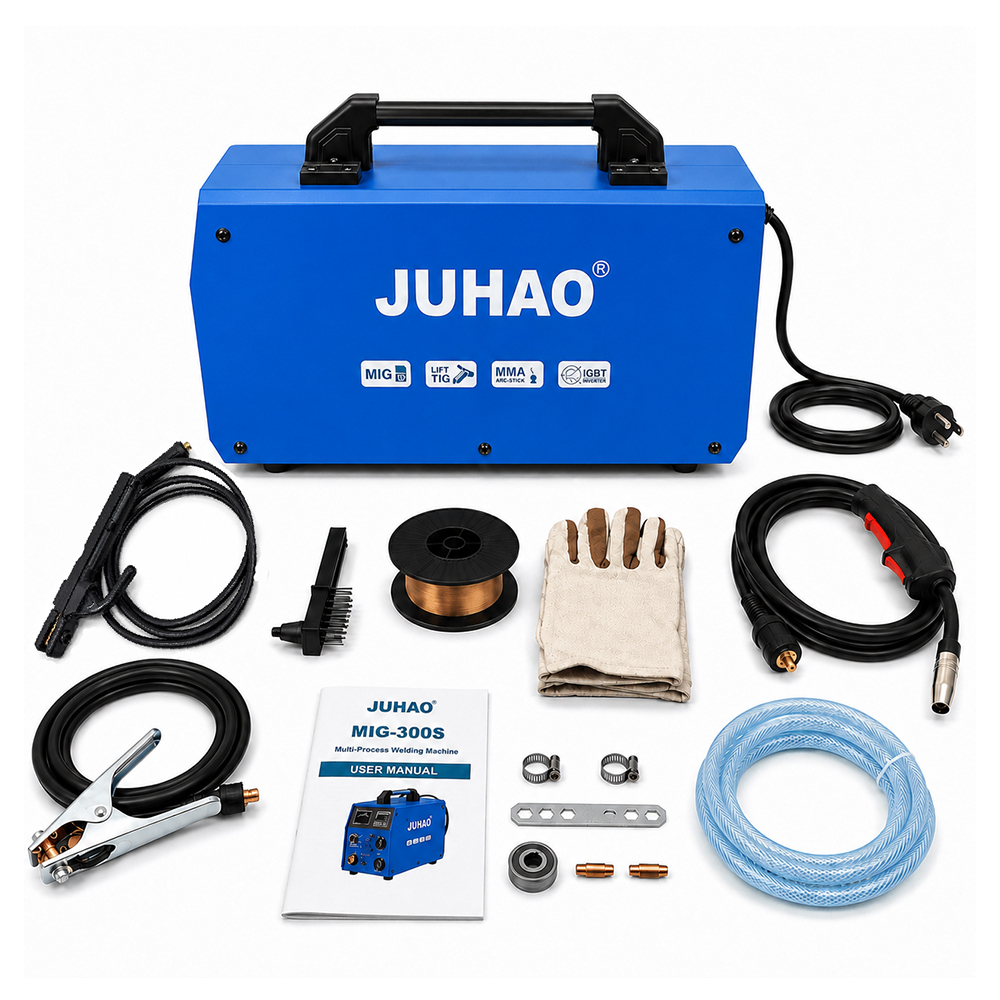

List of Accessories
✓ 1 Piece 2M Ground Clamp Cable
✓ 1 Piece 2M 14AK MIG Torch
✓ 1 Piece 1.8M 200A Electrode Holder Cable
✓ 1 Piece 0.8MM Welding Wire
✓ 1 Piece Steel Brush
✓ 1 Piece Safety Glasses
✓ 1 Piece Welding Gloves
✓ 1 Piece 3M Gas hose
✓ 1 Set Drive Roller/ Contact Tip/ Acessories
Machine Type | MIG WELDER |
Function | FULX MIG, GAS MIG, SCRATCH START TIG, MMA |
Input Voltage / Frequency | 220V 50HZ/60HZ |
Rated Input Current | 37A |
Output Current | GAS MIG: 30-200A/ FLUX MIG30-200A/ SCRATCH START TIG:10-200A/ MMA: 30-180A |
Rated Duty Cycle | 40℃ 60% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 65V |
Usable Electrode/Wire Diameter | Electrode:1.6-4.0MM/ Wire:0.8-1.2MM |
Welding Thickness Range | 0.3-6MM |
Insulation & Protection Class | F |
Machine Dimensions | 400*200*350MM |
Package Dimensions | 480*285*395MM |
Net Weight | 7.25KG |
Gross Weight | 11.4KG |
Q1. What welding processes does this machine support?
A1. It supports Gas MIG, Flux Core MIG (gasless), Lift TIG and MMA (stick) welding, providing multiple welding processes in one compact machine.
Q2. What is the maximum welding output?
A2. The machine delivers up to 200A output for MIG and Lift TIG welding, and up to 180A output for MMA welding on 220V input.
Q3. What is the duty cycle?
A3. The rated duty cycle is 60% at 200A, allowing continuous welding for 6 minutes within a 10-minute cycle at maximum output.
Q4. What power supply does it require?
A4. The machine operates on standard 220V single-phase power, commonly used in workshops, garages and light industrial environments.
Q5. Can I weld without shielding gas?
A5. Yes. The Flux Core MIG function supports gasless welding, making it suitable for outdoor and windy working conditions.
Q6. What welding wire and electrode sizes are supported?
A6. The machine supports 0.8mm-1.2mm welding wire for MIG welding and 1.6mm-4.0mm electrodes for MMA welding.
Q7. What materials and thicknesses can be welded?
A7. It is suitable for welding carbon steel and mild steel, with a recommended welding thickness range of 0.3mm-10mm, depending on the welding process, material type and application.
Q8. Is the machine easy to transport?
A8. Yes. With a net weight of only 7.25kg and a compact design (400×200×350mm), it is easy to move between workshops and job sites.
Q9. What applications is this machine suitable for?
A9. It is suitable for metal fabrication, equipment maintenance, repair work, workshop production and light industrial welding applications.
Q10. Do you offer OEM or private label services? What is the MOQ?
A10. Yes. OEM and ODM services are available for distributors, wholesalers and private label brands. MOQ is negotiable depending on product specifications, branding requirements and order quantity. Please contact us for detailed information.
