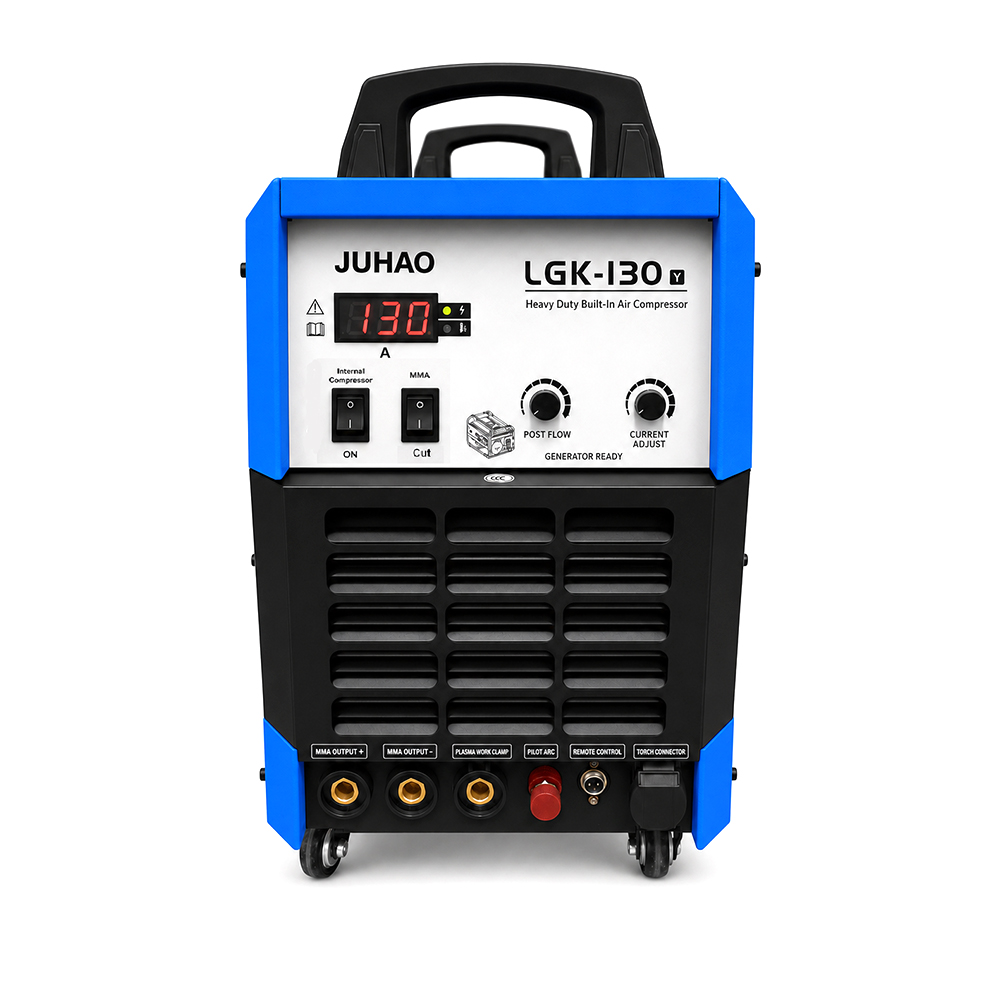

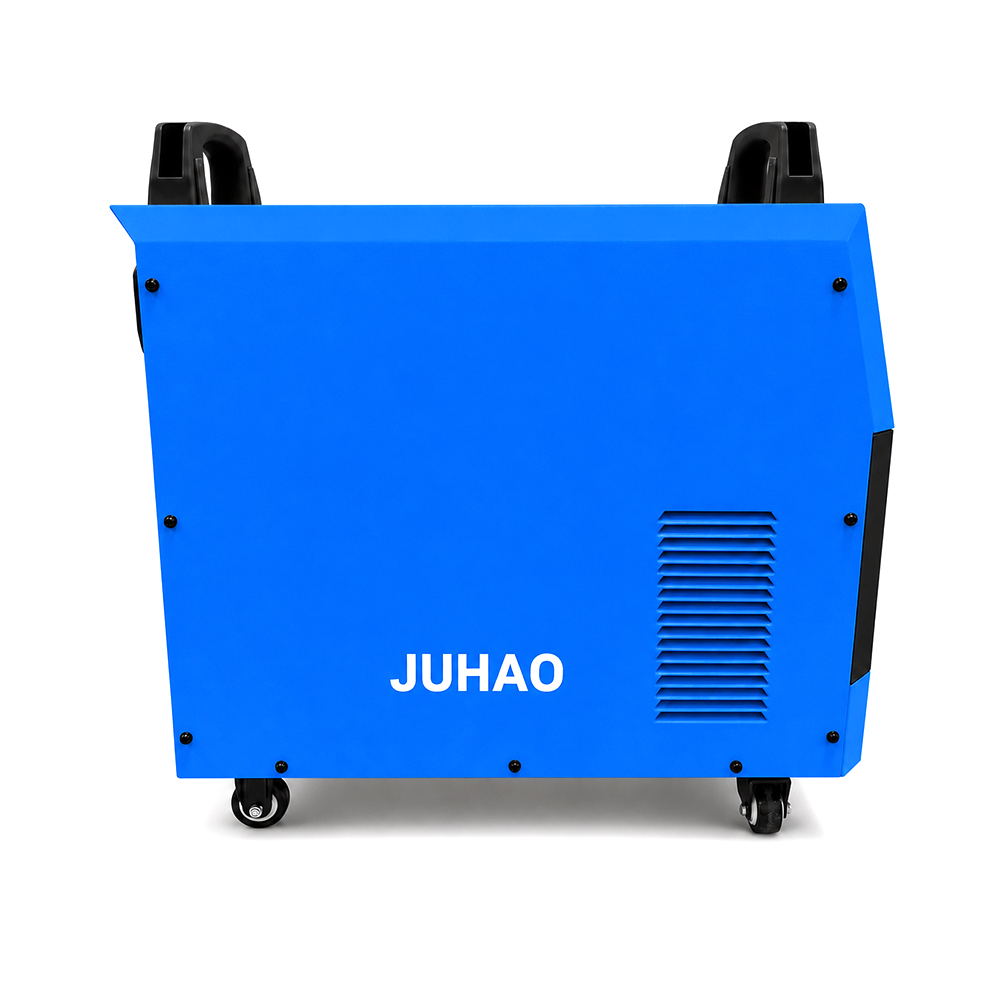

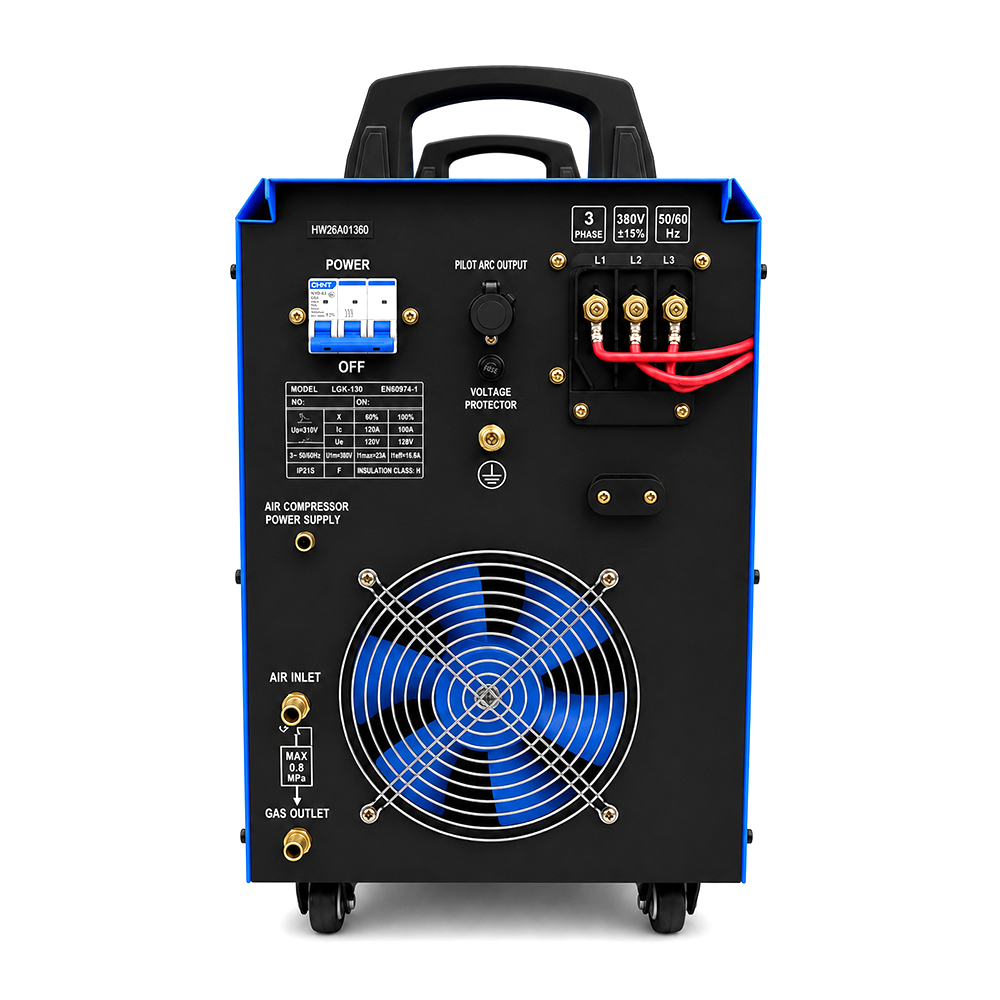

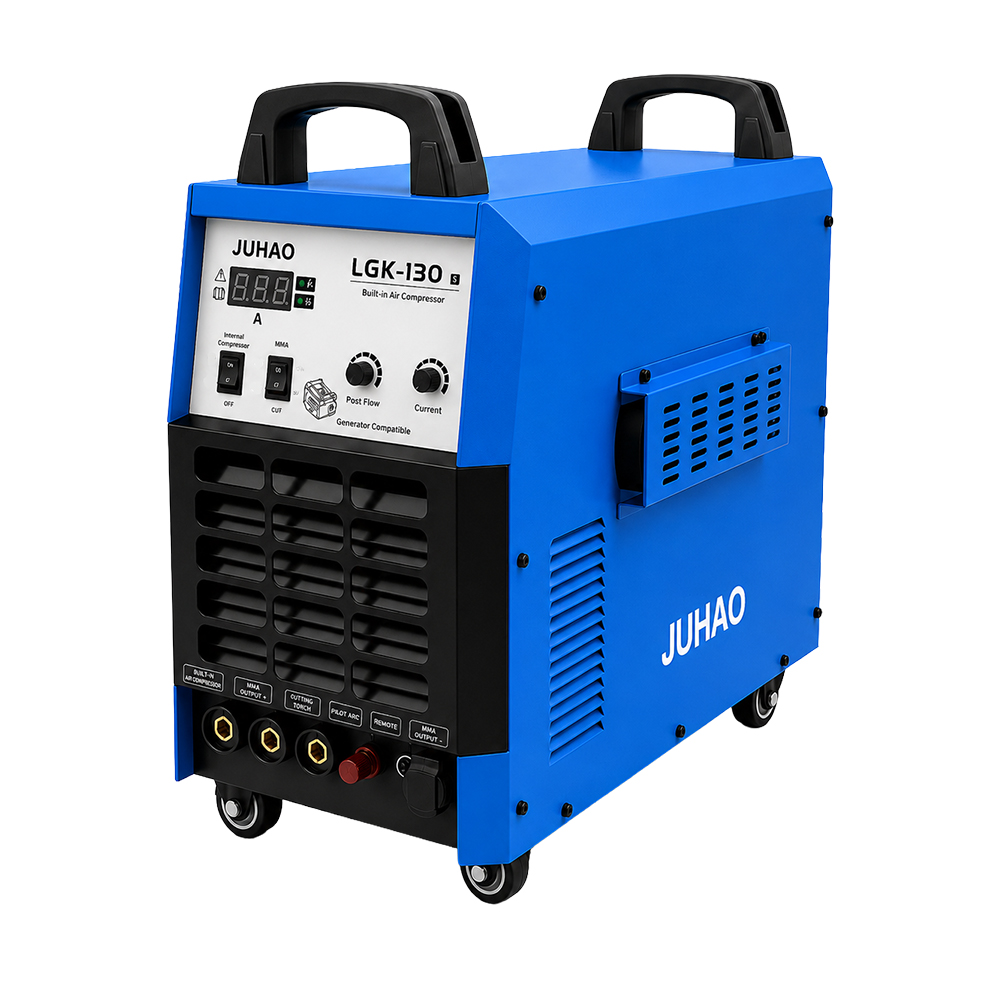

120A Plasma Cutter & 240A MMA Welder 380V with Built-In Air Compressor
 | THE COMPLETE MACHINE COMES WITH A ONE-YEAR WARRANTY. |  | FOR EACH SHIPMENT, WE WILL PROVIDE SPARE PARTS FREE OF CHARGE, EQUIVALENT TO 1%–2% OF THE TOTAL ORDER VALUE. |

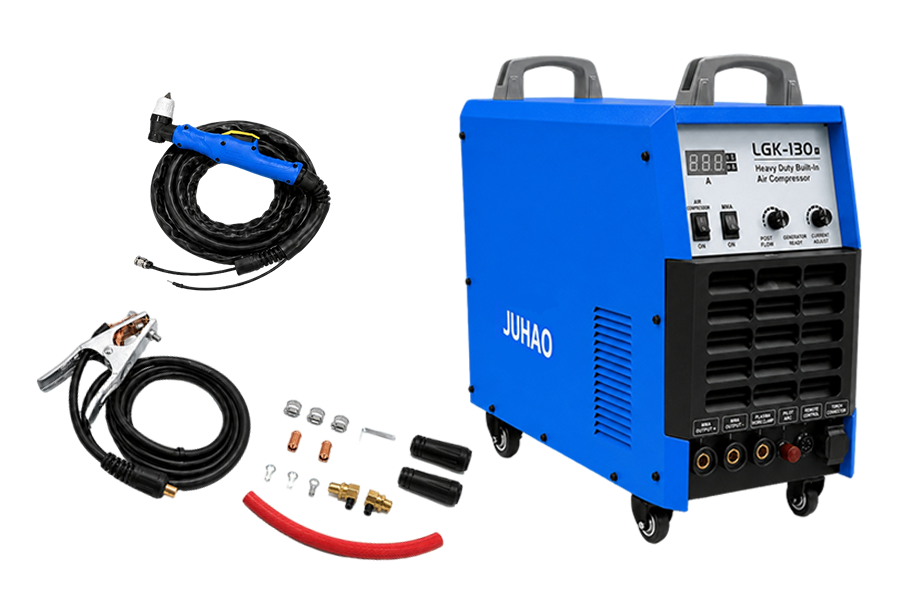

 | ACCESSORIES ☑ 2M Ground Clamp Cable x1 ☑ 5M Plasma Torch x1 ☑ Accessories x1 set |
Machine Type | PLASMA CUTTER |
Function | CUT, MMA |
Input Voltage / Frequency | 380V 50HZ/60HZ |
Rated Input Current | 48A |
Output Current | CUT:120A MMA:30-240A |
Built-in Air Compressor | 1680W |
Rated Duty Cycle | 40℃ 60% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 320V |
Electrode Diameter | 3.2-5.0MM |
Cutting Thickness Range | 1-50MM |
Insulation & Protection Class | F |
Machine Dimensions | 600*330*530MM |
Package Dimensions | 700*420*670MM |
Net Weight | 35KG |
Gross Weight | 52KG |
 | ◉ Plasma cutting and MMA welding Cut and weld with one machine to save equipment space. ◉ Up to 120 A cutting and 240 A MMA output Provides capacity for plate cutting and workshop welding. ◉ 60% duty cycle at 40°C Supports longer work periods at the specified duty-cycle current. |
◉ Built-in 1680 W air pump Supplies cutting air without a separate compressor. ◉ Preset cutting current Set the current before cutting to suit the workpiece. ◉ Stable cutting current Helps keep the cut consistent as the torch moves. |  |
 | ◉ Overheat and overcurrent protection Helps protect internal components from overheating and excessive current. ◉ 5 m P80 torch and 2 m ground cable included Provides practical reach around larger workpieces. |
Q1. What functions does the LGK-130Y support? A1. The LGK-130Y combines plasma cutting and MMA stick welding in one machine, allowing users to perform both cutting and welding tasks with a single power source. Q2. What power supply does the LGK-130Y require? A2. The machine operates on 380V power at 50/60Hz and is designed for industrial workshops, fabrication facilities, and maintenance environments. Q3. What is the plasma cutting output range? A3. The plasma cutting output is adjustable from 1–120A, providing flexibility for a wide range of cutting applications. Q4. What is the MMA welding output range? A4. The MMA welding output range is 30–240A and supports 3.2–5.0mm electrodes for fabrication, repair, and maintenance work. Q5. Does the LGK-130Y have a built-in air compressor? A5. Yes. The machine is equipped with an integrated air compressor, helping simplify setup for plasma cutting applications. Q6. What cutting thickness can the LGK-130Y handle? A6. The machine is designed for cutting applications on conductive metals with thicknesses from 1–50mm. Actual cutting performance depends on material type and operating conditions. Q7. What materials can it cut? A7. The plasma cutting function is suitable for conductive metals commonly processed with plasma cutting equipment. Q8. Does MMA welding require shielding gas? A8. No. MMA stick welding uses flux-coated electrodes and does not require an external shielding gas supply. Q9. What are the key technical specifications? A9. The LGK-130Y features IGBT inverter technology, a 60% duty cycle, a no-load voltage of 320V, insulation class F, and efficiency of up to 85%. Q10. What applications is the LGK-130Y best suited for? A10. The LGK-130Y is suitable for fabrication workshops, structural steel work, equipment repair, industrial maintenance, metal processing, and other applications requiring both plasma cutting and MMA welding capabilities |
