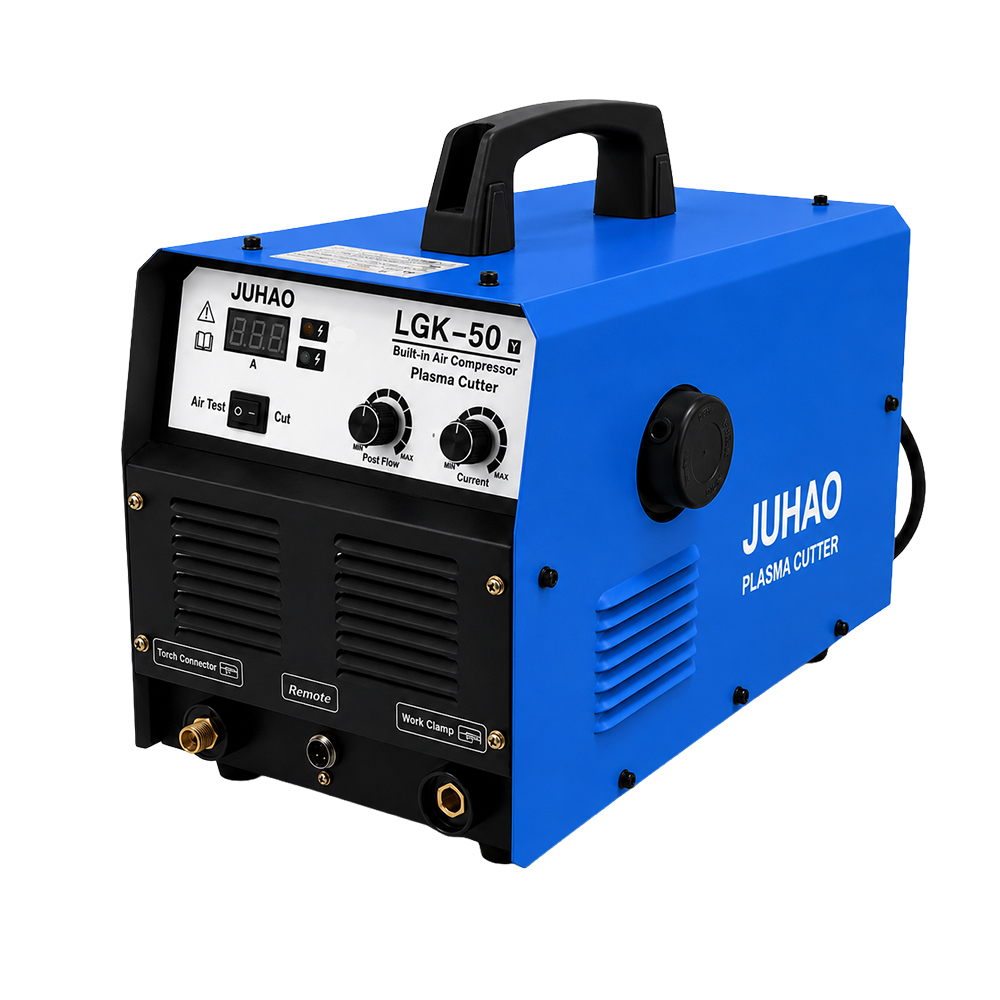

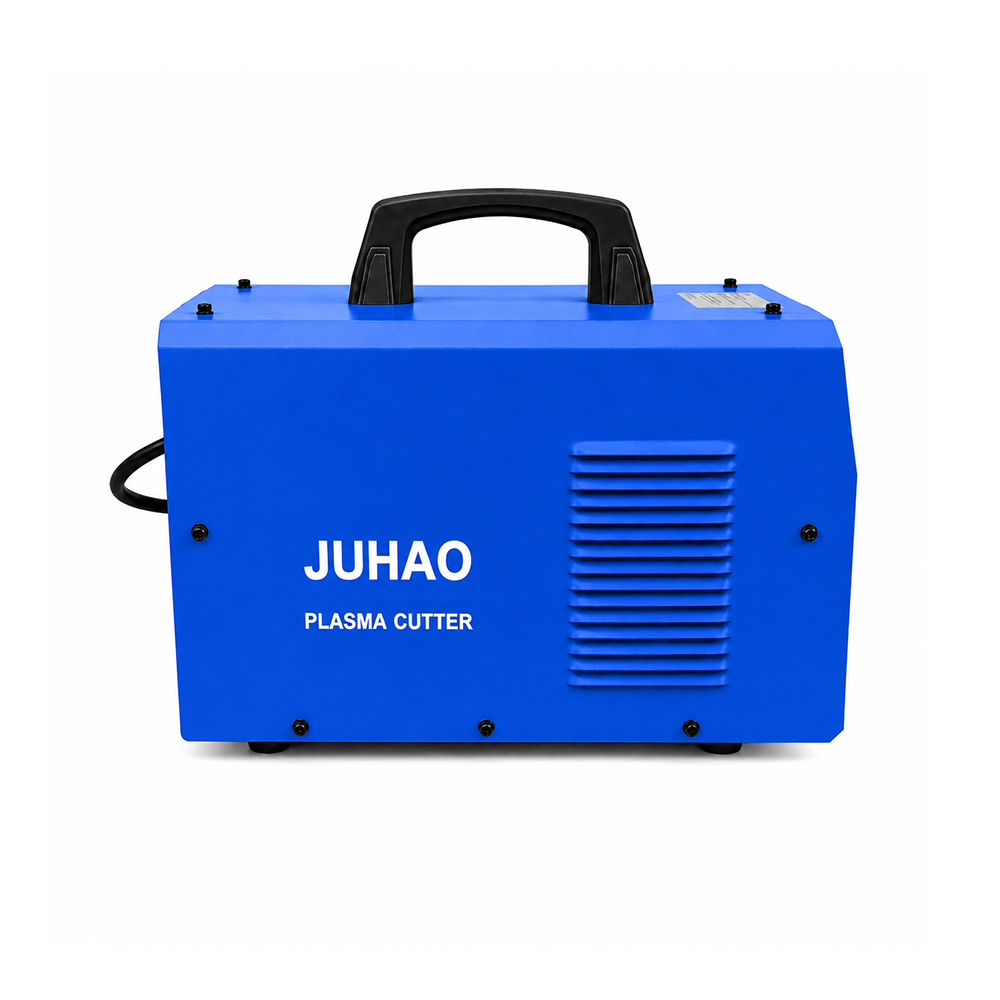

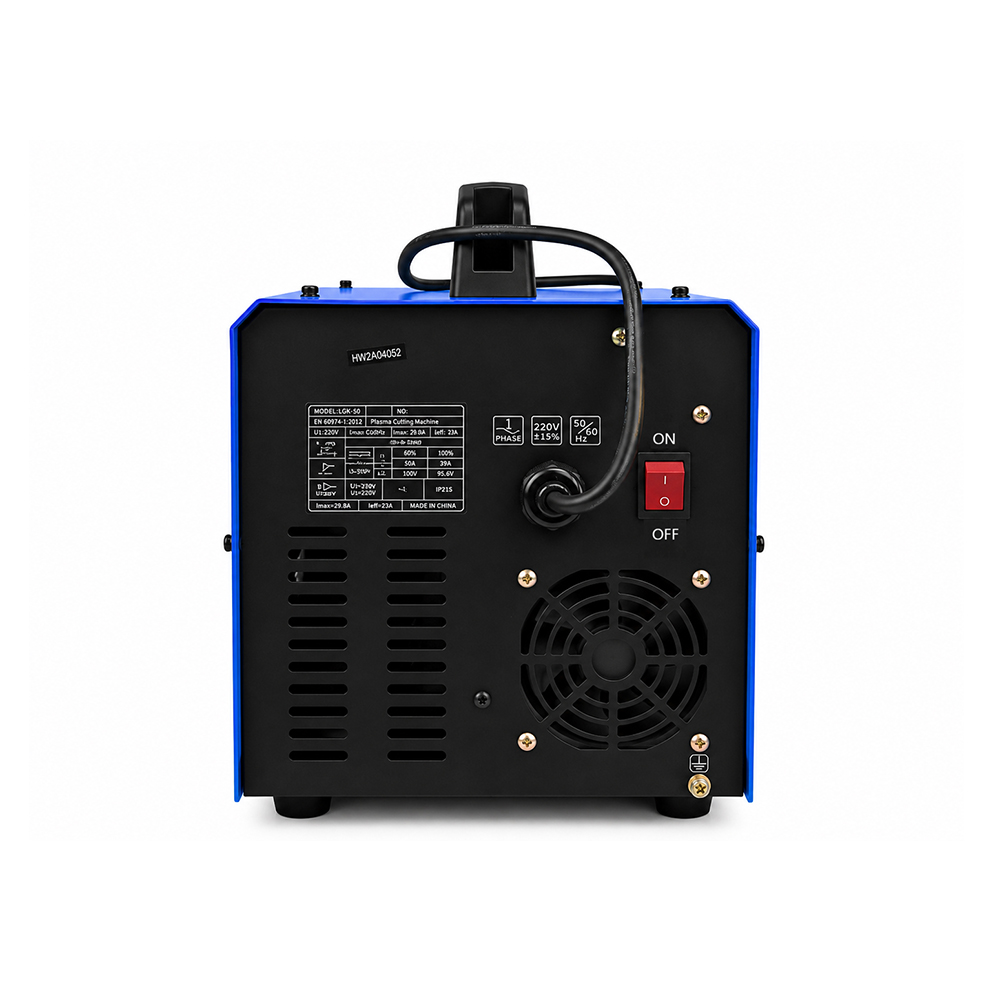

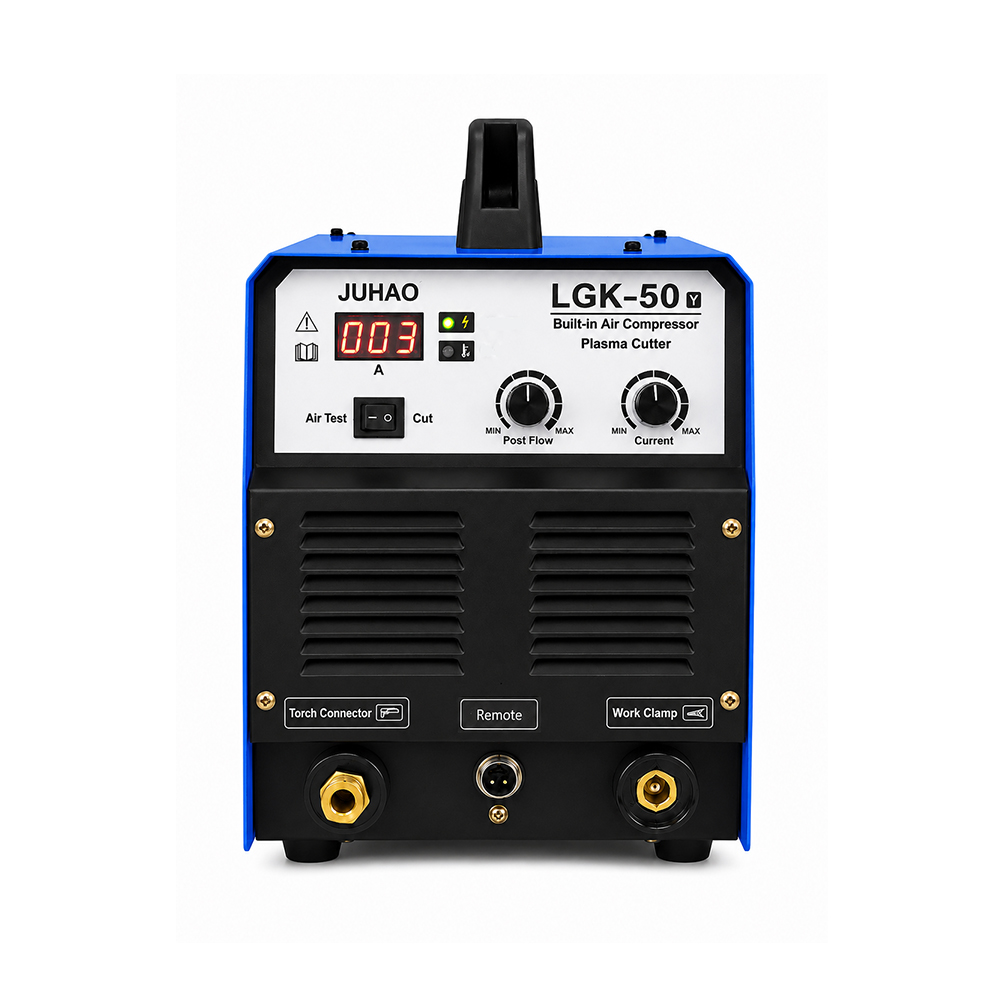

LGK-50Y 40A Portable Plasma Cutter 220V with Built-In Air Compressor
 | THE COMPLETE MACHINE COMES WITH A ONE-YEAR WARRANTY. |  | FOR EACH SHIPMENT, WE WILL PROVIDE SPARE PARTS FREE OF CHARGE, EQUIVALENT TO 1%–2% OF THE TOTAL ORDER VALUE. |

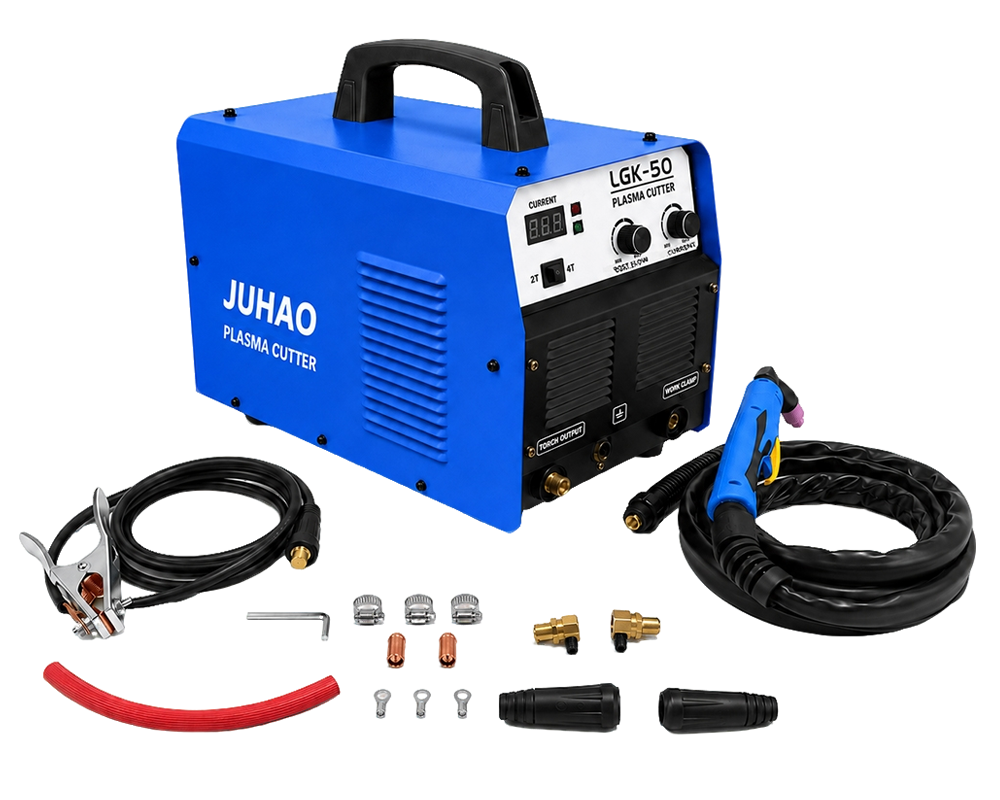

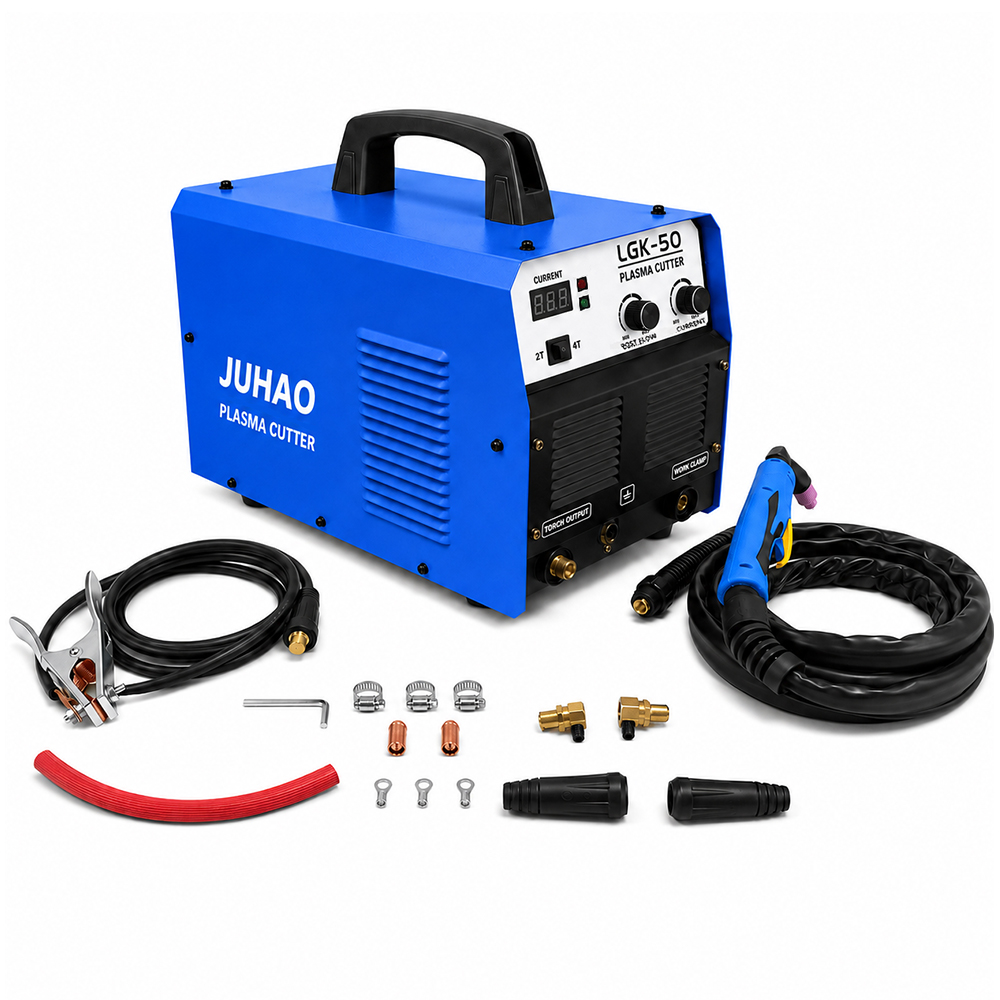

 | ACCESSORIES ☑ 3M AG60 Plasma Cutting Torch x1 ☑ 2M 300A Earth Cable x1 ☑ 10-25 connector x1 set ☑ Air hose x1 |
Machine Type | Plasma Cutting Machine |
Function | CUT |
Input Voltage / Frequency | 220V, 50/60HZ |
Rated Input Current | 220V: 38A |
Output Current | 220V: 40A |
Rated Duty Cycle | 40℃ 20% |
Inverter Technology | IGBT |
Efficiency | 85% |
No-load Voltage | 280V |
Cutting Thickness Range | 1-10MM |
Insulation & Protection Class | F |
Machine Dimensions | 400*155*290MM |
Package Dimensions | 490*280*400MM |
Net Weight | 14.3KG |
Gross Weight | 16.8KG |
 | ◉ 40 A plasma cutting output Handles sheet and plate cutting for repair and fabrication work. ◉ Preset cutting current Set the current before cutting to suit the workpiece. ◉ Stable cutting current Helps keep the cut consistent as the torch moves. |
◉ Built-in 750 W air pump Supplies cutting air without a separate compressor. ◉ Single-phase 220 V input Works with a suitable single-phase workshop supply. |  |
 | ◉ Overheat and overcurrent protection Helps protect internal components from overheating and excessive current. ◉ 4 m AG60 torch and 2 m ground cable Provides practical working reach around the cutting area. |
Q1. What is the LGK-50Y used for? A1. The LGK-50Y is a 220V portable plasma cutter designed for light fabrication, maintenance, repair work, metalworking projects, and general cutting applications in garages and small workshops.
Q2. What power supply does the LGK-50Y require? A2. The machine operates on standard 220V power at 50/60Hz, making it suitable for garages, workshops, and locations with standard single-phase power.
Q3. What is the plasma cutting output range? A3. The plasma cutting output is adjustable from 1–40A and supports cutting applications on conductive metals with thicknesses up to 10mm.
Q4. Does the LGK-50Y have a built-in air compressor? A4. Yes. The machine is equipped with a built-in 750W air compressor, helping simplify machine setup and support plasma cutting operation in suitable working environments.
Q5. Is the LGK-50Y portable? A5. Yes. With a machine weight of 14.3kg and compact dimensions of 400 × 155 × 290mm, it is easy to transport, store, and move around the workshop.
Q6. What accessories are included? A6. The standard package includes a plasma cutting torch, ground cable, and related cutting accessories. Please confirm the exact package contents with your supplier before ordering.
Q7. Is the LGK-50Y suitable for DIY users and small workshops? A7. Yes. Its 220V power input, compact size, and simple operation make it suitable for DIY projects, home garages, small workshops, and light fabrication applications.
Q8. What is the advantage of the built-in air compressor? A8. The integrated air compressor helps reduce equipment requirements and simplifies machine setup compared with plasma cutting systems that rely entirely on separate external air sources.
Q9. What are the key technical specifications? A9. The LGK-50Y features IGBT inverter technology, a 20% duty cycle, a no-load voltage of 280V, insulation class F, and efficiency of up to 85%.
Q10. What applications is the LGK-50Y best suited for? A10. The LGK-50Y is suitable for DIY projects, garage workshops, metalworking, light fabrication, maintenance work, and general repair applications requiring portable plasma cutting capability. |
