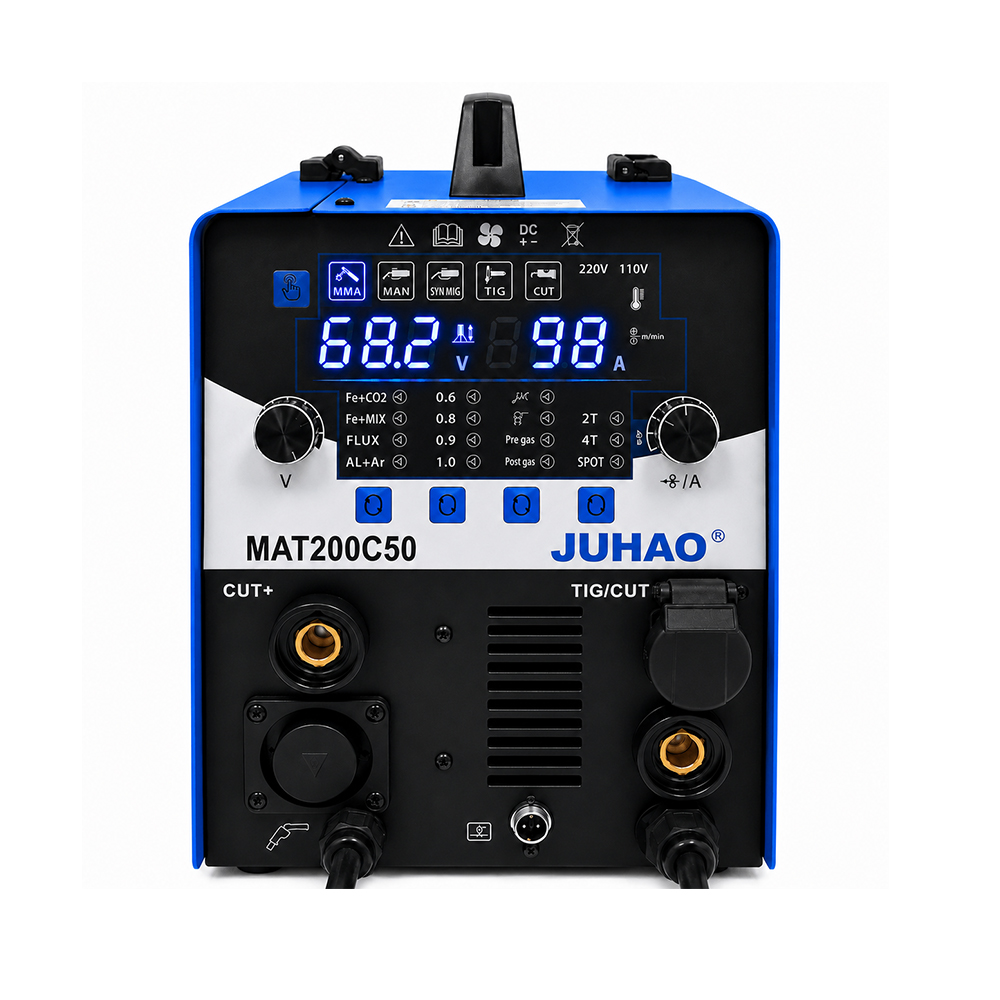

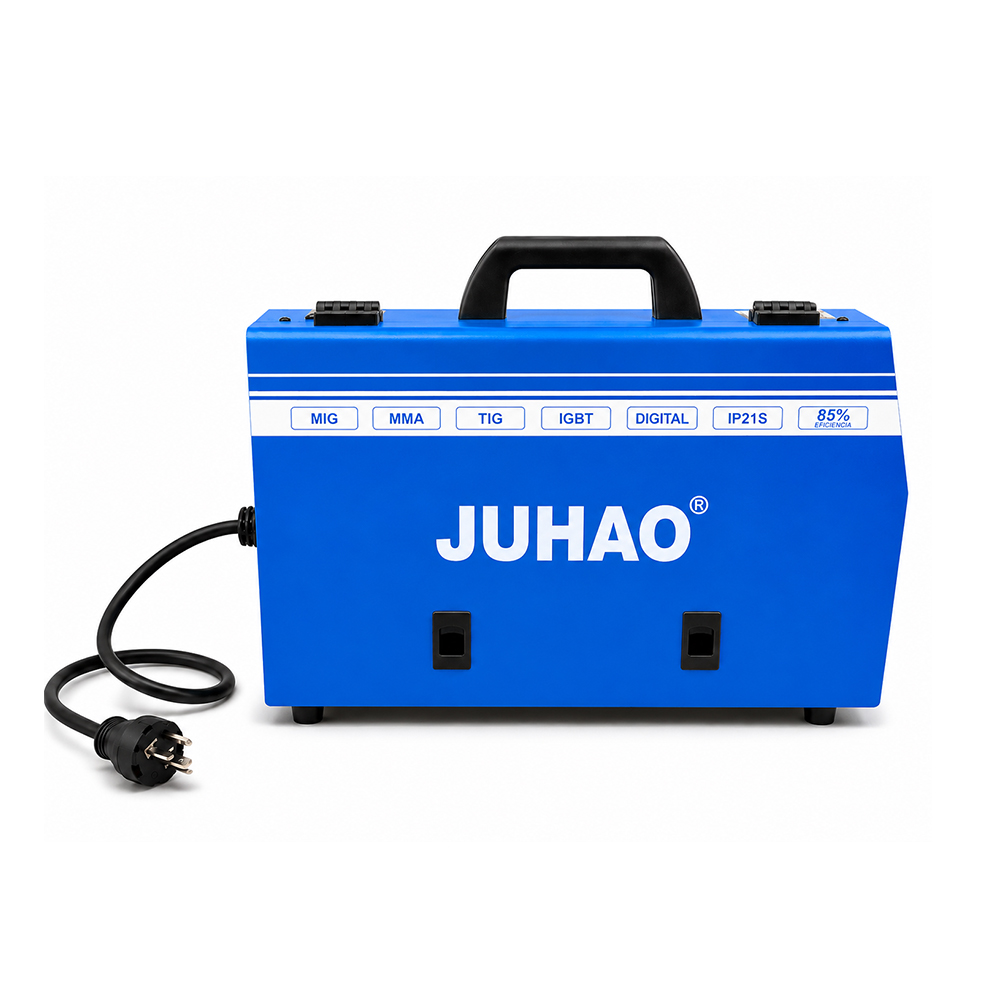

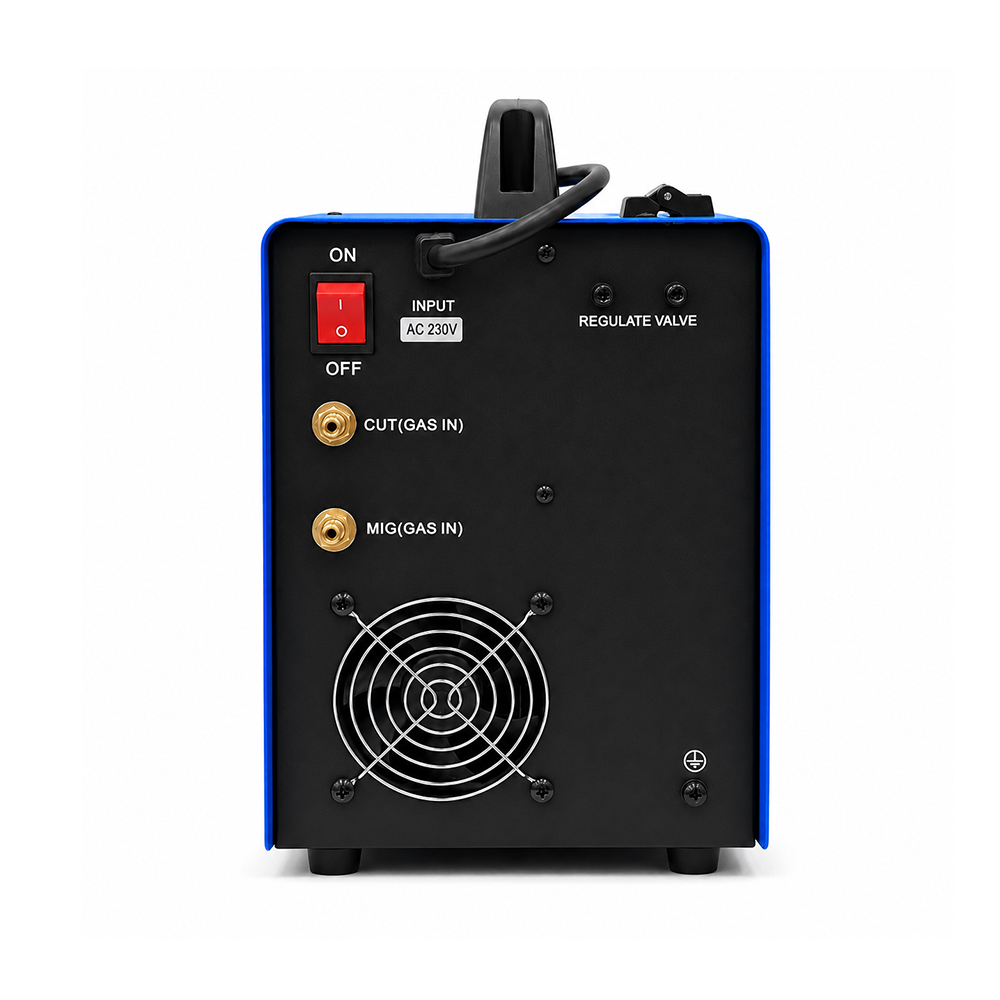

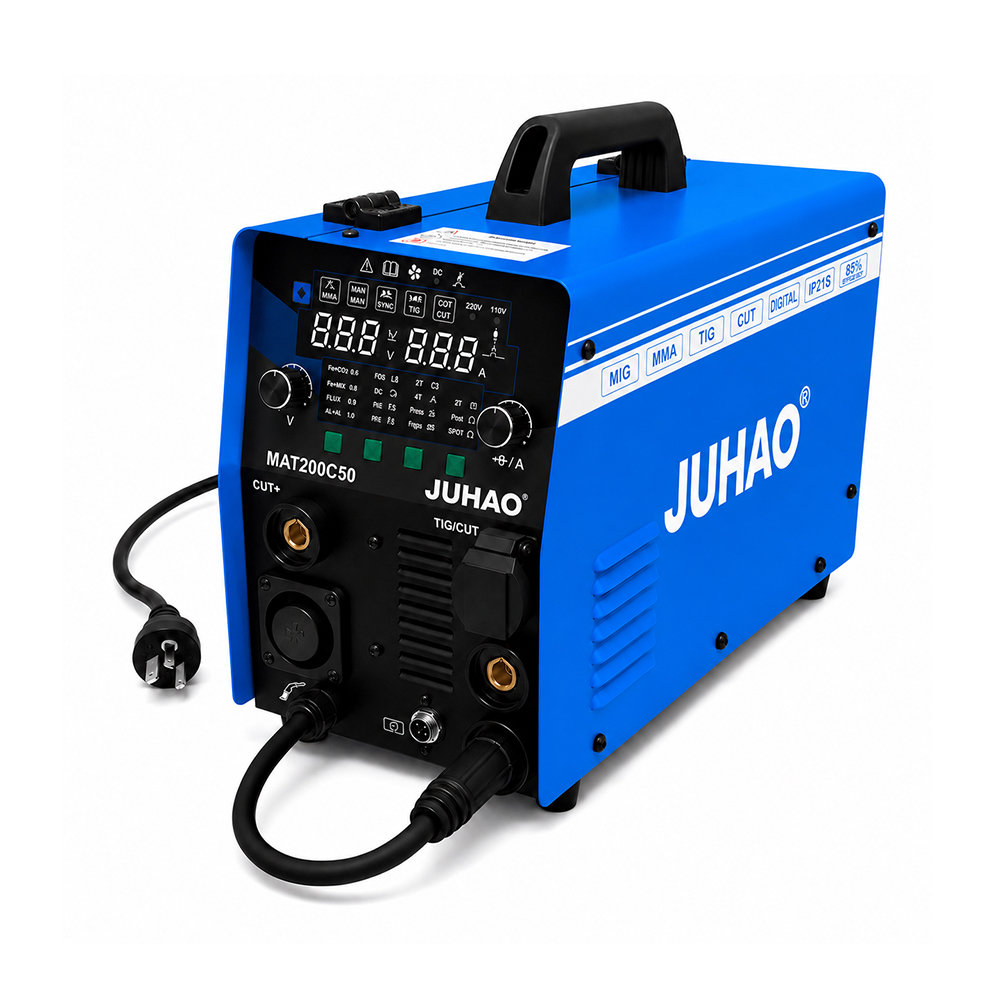

6-In-1 Multi-Process Welder with 40A Plasma Cutter, Dual Voltage 110V/220V
☑ 6-In-1 Multi Process Function
Supports MIG, Flux Core MIG, Pulse MIG, TIG, MMA and Plasma Cutting in one machine.
☑ Dual Voltage Input 110V/220V
Flexible operation for both home users and professional workshops.
☑ Advanced IGBT Inverter Technology
Provides stable arc performance, reduced spatter and improved efficiency.
☑ Perfect for Thin Sheet Metal Welding
Perfect for thin sheet metal welding (down to 0.3mm with Pulse MIG) and heavy-duty cutting tasks (up to 10mm with 40A Plasma Cutter).
☑ Advanced Pulse MIG Technology
The integrated Pulse MIG mode provides better arc stability, reduced spatter and lower heat input, making it ideal for stainless steel and carbon steel fabrication.
☑ Portable Compact Design
Only 9.28kg net weight for easy transportation and on-site operation.

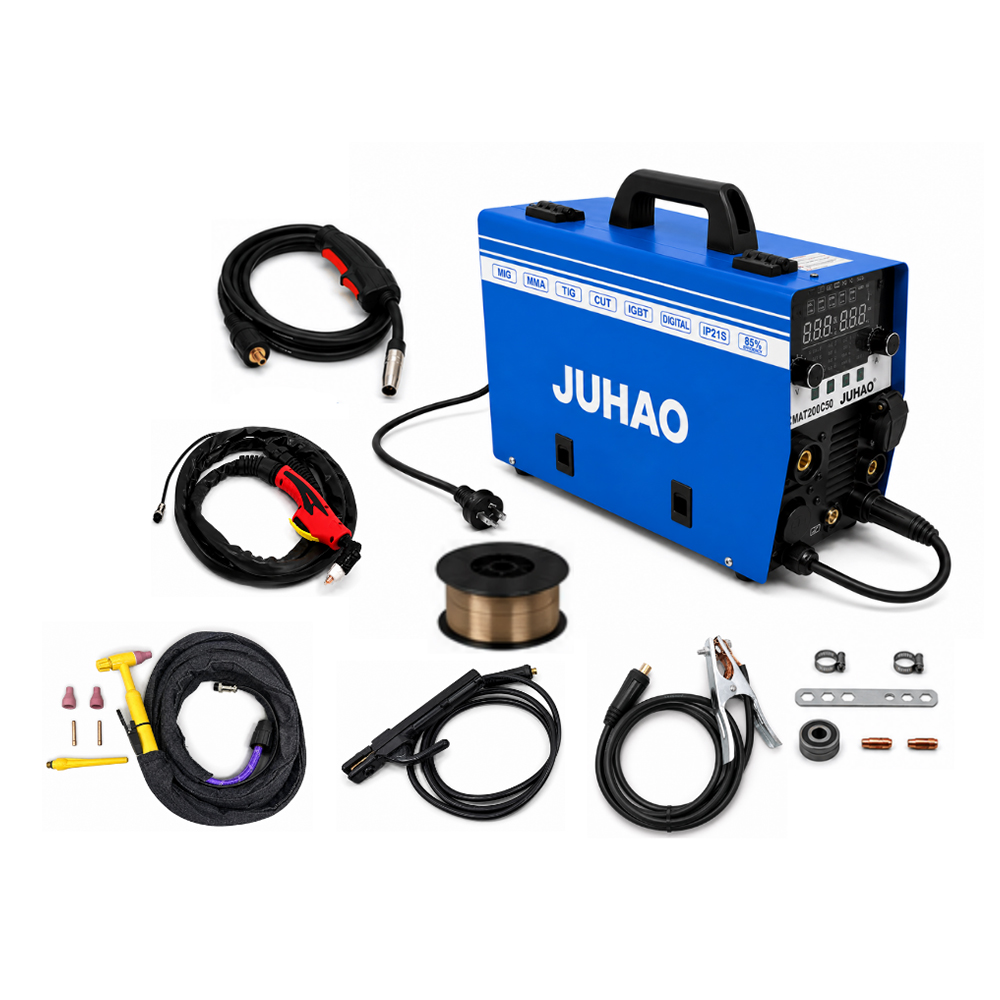

List of Accessories
✓ 1 Piece 3M 200A Electrode Holder Cable
✓ 1 Piece 2M Ground Clamp Cable
✓ 1 Piece 4M WP-17 TIG Torch
✓ 1 Piece 3M 15AK Torch
✓ 1 Piece 3M PT31 Plasma Torch
✓ 1 Piece 0.8mm Welding Wire
✓ 1 Set of Drive Roller/Contact Tip/Accessories
Machine Type | 6 IN 1 MULT-PROCESS WELDER |
Function | MIG, Flux Core MIG, Pulse MIG, TIG, MMA, CUT |
Input Voltage / Frequency | 110/220V 50HZ/60HZ |
Rated Input Current | 110V:45A 220V:32A |
Output Current | 110V, MMA:30-120/ MIG:30-120/ TIG:10-120/ Double Pulse MIG:30-120/ Single Pulse MIG:30-120/ Flux Core MIG:30-120A/ CUT:30A |
Rated Duty Cycle | 40℃ 30% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 65V |
Usable Electrode/Wire Diameter | 110V, Electrode: 1.6-3.2MM, Wire：0.8-1.0MM 220V, Electrode: 1.6-4.0MM, Wire：0.8-1.2MM |
Welding Thickness Range | 0.3-10MM |
Insulation & Protection Class | F |
Machine Dimensions | 440*200*350MM |
Package Dimensions | 540*325*430MM |
Net Weight | 9.28KG |
Gross Weight | 16.2KG |
Q1. What welding processes does this machine support?
A1. This machine supports Gas MIG, Flux Core MIG, Pulse MIG, TIG, MMA welding and 40A plasma cutting, providing six functions in one compact unit.
Q2. Can it operate on both 110V and 220V power?
A2. Yes. The machine features dual voltage 110V/220V input, making it suitable for both home and workshop applications.
Q3. What is the maximum welding output current?
A3. The maximum welding output is 180A under 220V input and 120A under 110V input.
Q4. What is the maximum plasma cutting current?
A4. The machine delivers up to 40A plasma cutting output on 220V input and 30A on 110V input.
Q5. What materials can be welded?
A5. It is suitable for welding carbon steel and stainless steel in a wide range of fabrication, repair and maintenance applications.
Q6. What wire sizes are supported?
A6. The machine supports 0.8-1.2mm welding wire on 220V input and 0.8-1.0mm welding wire on 110V input.
Q7. What electrode sizes can be used?
A7. The recommended electrode size is 1.6-4.0mm under 220V input and 1.6-3.2mm under 110V input.
Q8. Can this machine perform gasless welding?
A8. Yes. It supports Flux Core MIG welding, allowing gasless operation without the need for an external shielding gas cylinder.
Q9. What makes Pulse MIG welding beneficial?
A9. Pulse MIG technology helps reduce spatter, improve arc stability and lower heat input, making it ideal for thin-gauge steel and stainless steel applications.
Q10. What is the maximum welding thickness?
A10. The machine is suitable for welding materials from 0.3mm to 10mm, depending on the welding process, material type and operating conditions.
