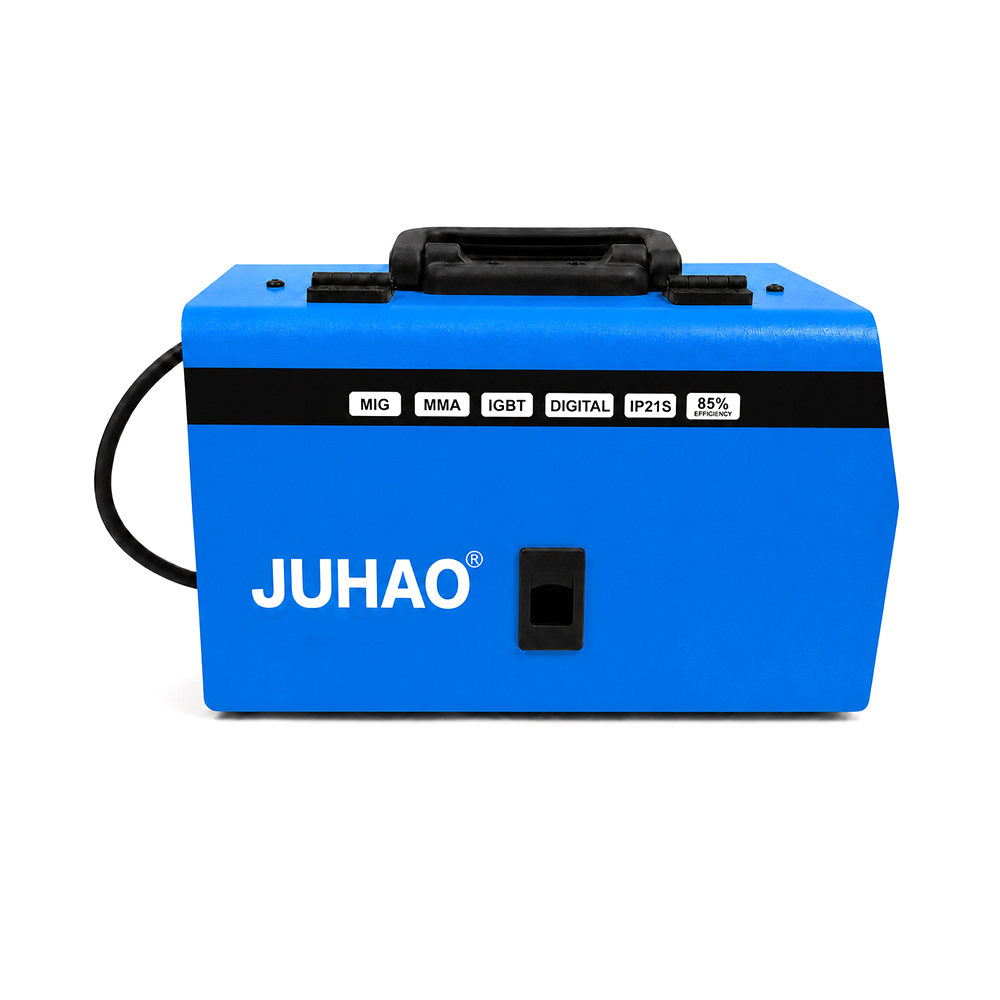

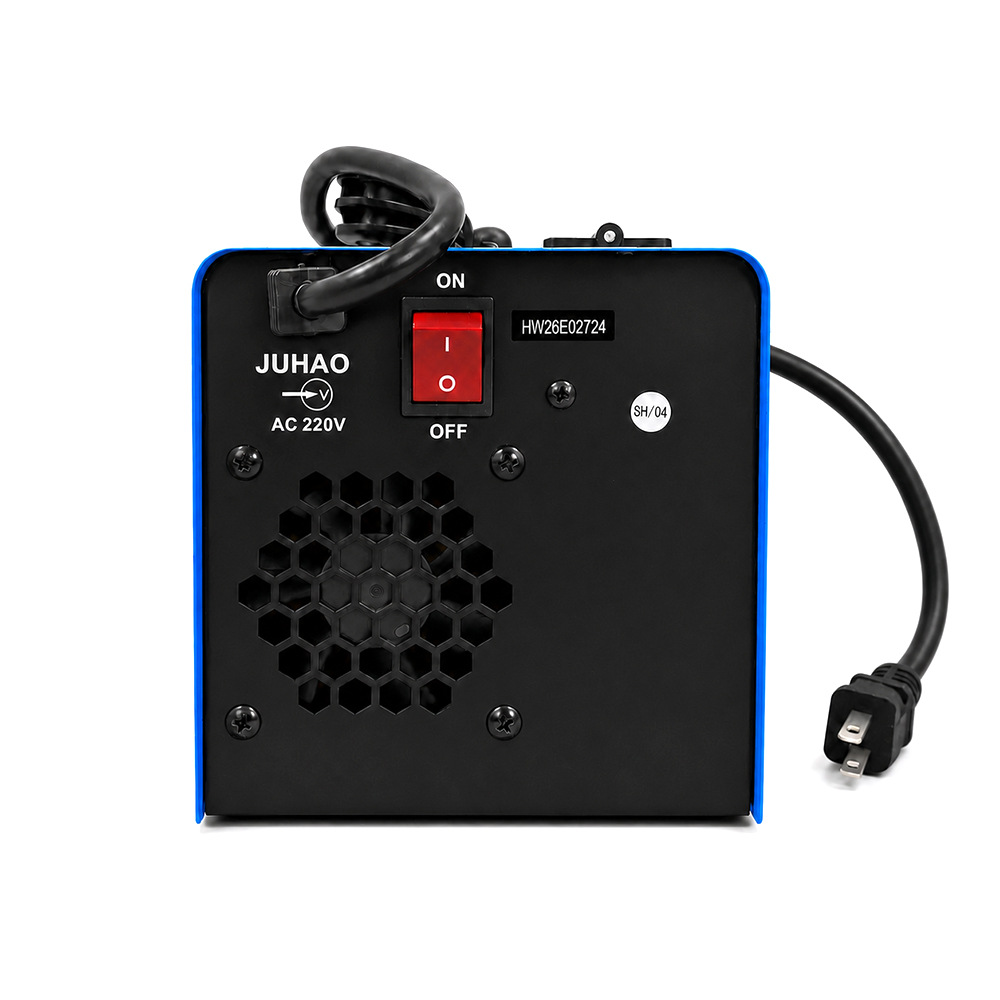

120A Portable MIG Welder, Gas & Flux Core, 220V IGBT Inverter
☑ Compact 220V MIG Welder
Designed for garages, home workshops, and light fabrication applications.
☑ Up to 120A Welding Output
Provides reliable performance for sheet metal, brackets, small frames, and maintenance work.
☑ Gas & Flux Core Welding Capability
Supports both solid wire with shielding gas and flux core wire for greater flexibility.
☑ Welds 0.3-5mm Steel
Ideal for sheet metal, small parts, automotive repair, and general fabrication tasks.
☑ Advanced IGBT Inverter Technology
Delivers stable arc performance, improved efficiency, and consistent welding results.
☑ Portable 3.7kg Design
Lightweight and easy to carry, store, and use in workshops or mobile repair applications.

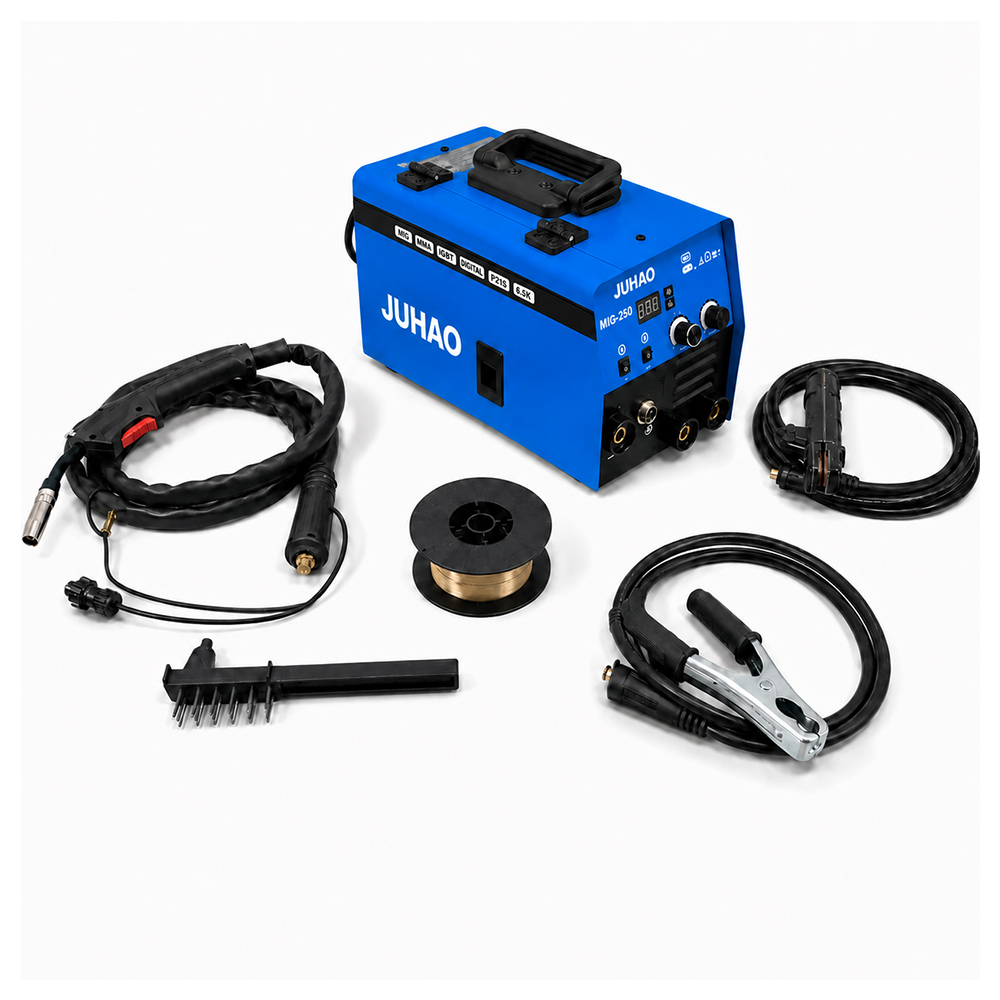

List of Accessories
✓ 1 Piece 2M Ground Clamp Cable
✓ 1 Piece 2M 14AK MIG Torch
✓ 1 Piece 1.8M 200A Electrode Holder Cable
✓ 1 Piece 0.8MM Welding Wire
✓ 1 Piece Steel Brush
✓ 1 Piece Safety Glasses
✓ 1 Piece Welding Gloves
Machine Type | MIG WELDER |
Function | MIG, TIG, MMA |
Input Voltage / Frequency | 220V 50HZ/60HZ |
Rated Input Current | 45A |
Output Current | MIG:30-120A/ TIG:10-120A/ MMA:30-120A |
Rated Duty Cycle | 40℃ 15% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 65V |
Usable Electrode/Wire Diameter | Electrode: 2.0-3.2MM Wire: 0.8-1.0MM |
Welding Thickness Range | 0.3-5MM |
Insulation & Protection Class | F |
Machine Dimensions | 280*150*190MM |
Package Dimensions | 370*182*295MM |
Net Weight | 3.7KG |
Gross Weight | 4.15KG |
Q1. What input voltage does this MIG welder use?
A1. It operates on standard 220V input at 50/60Hz, making it suitable for workshops, garages, and light fabrication environments.
Q2. Can this welder operate without shielding gas?
A2. Yes. The machine supports flux core wire for gasless welding and can also be used with solid wire and shielding gas for MIG welding.
Q3. What wire sizes does it support?
A3. It supports 0.8mm and 1.0mm solid or flux core wire, covering the most common wire sizes for light MIG welding applications.
Q4. What material thickness can it weld?
A4. The recommended welding thickness range is 0.3mm to 5mm, making it suitable for sheet metal, brackets, small frames, and repair work.
Q5. What is the duty cycle?
A5. The rated duty cycle is 20% at maximum output, providing reliable performance for light fabrication and repair applications.
Q6. What technology does it use?
A6. The machine features advanced IGBT inverter technology for stable arc performance, improved efficiency, and compact portability.
Q7. Does it support both solid wire and flux core wire?
A7. Yes. The welder is compatible with both solid wire for gas-shielded MIG welding and flux core wire for gasless welding.
Q8. Is it suitable for automotive work?
A8. Yes. It is ideal for automotive body repair, sheet metal work, garage projects, and light maintenance tasks.
Q9. Is this machine beginner-friendly?
A9. Yes. Its compact size, simple controls, and flexible welding modes make it a great choice for DIY users, hobbyists, and first-time welders.
Q10. Do you offer OEM or private label services?
A10. Yes. OEM and ODM services are available, including custom branding, packaging, and product customization. Please contact us for MOQ and project details.
