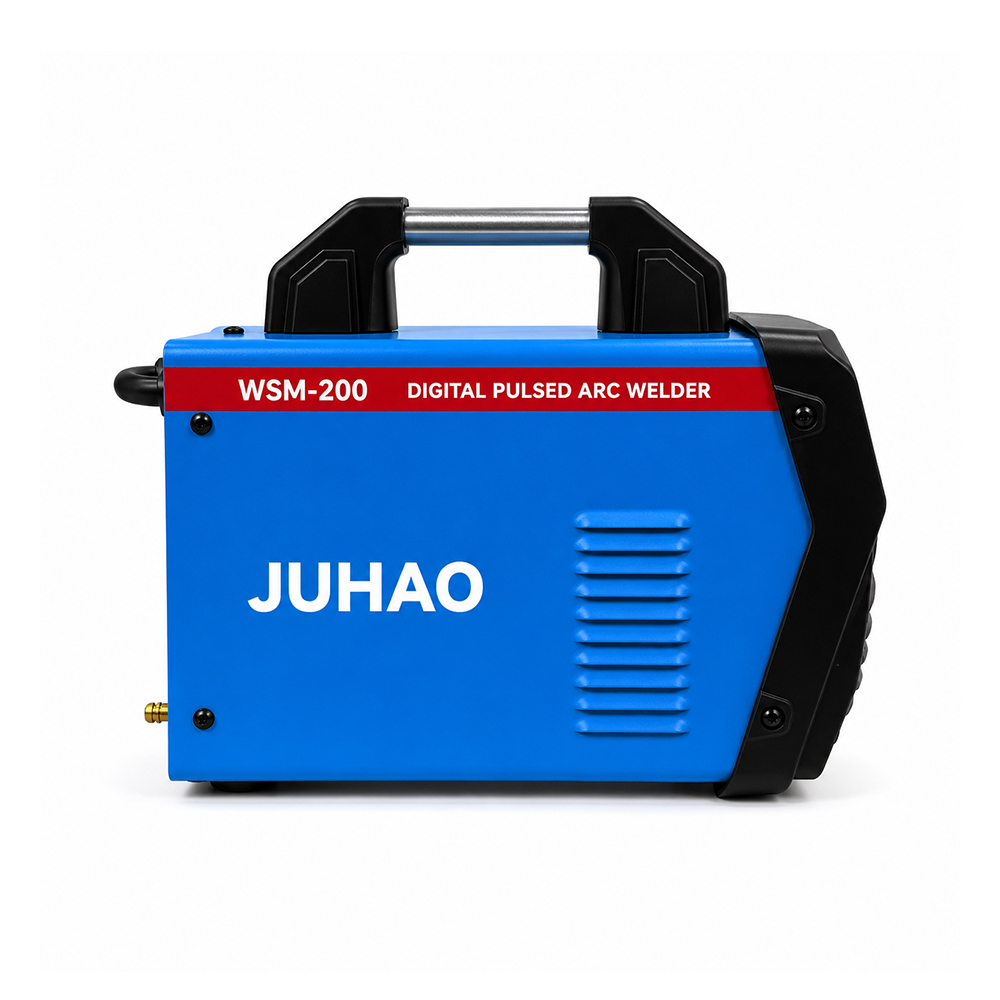

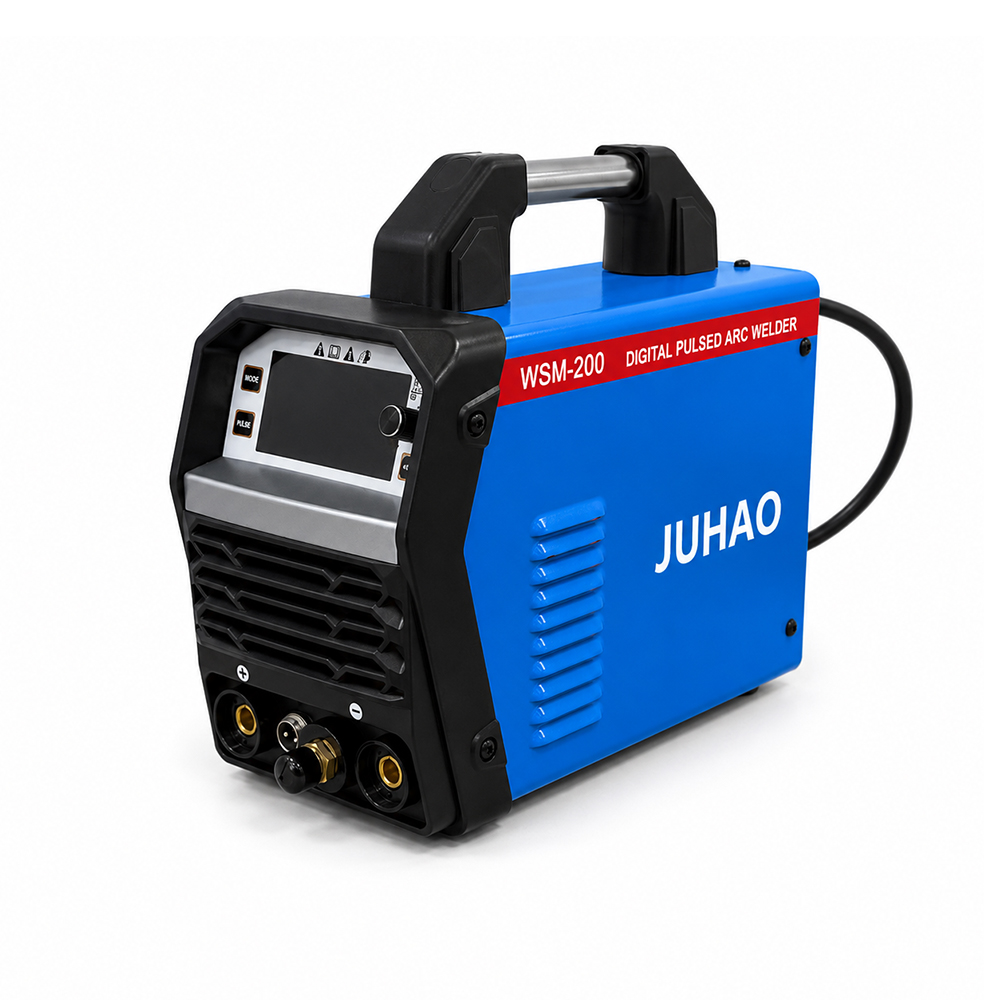

220V TIG MMA Welder 160A IGBT Inverter Welding Machine
 | THE COMPLETE MACHINE COMES WITH A ONE-YEAR WARRANTY. |  | FOR EACH SHIPMENT, WE WILL PROVIDE SPARE PARTS FREE OF CHARGE, EQUIVALENT TO 1%–2% OF THE TOTAL ORDER VALUE. |

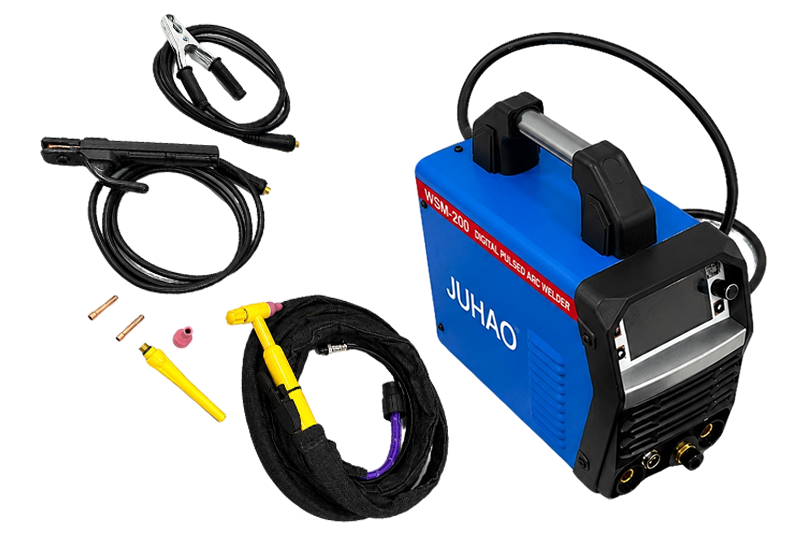

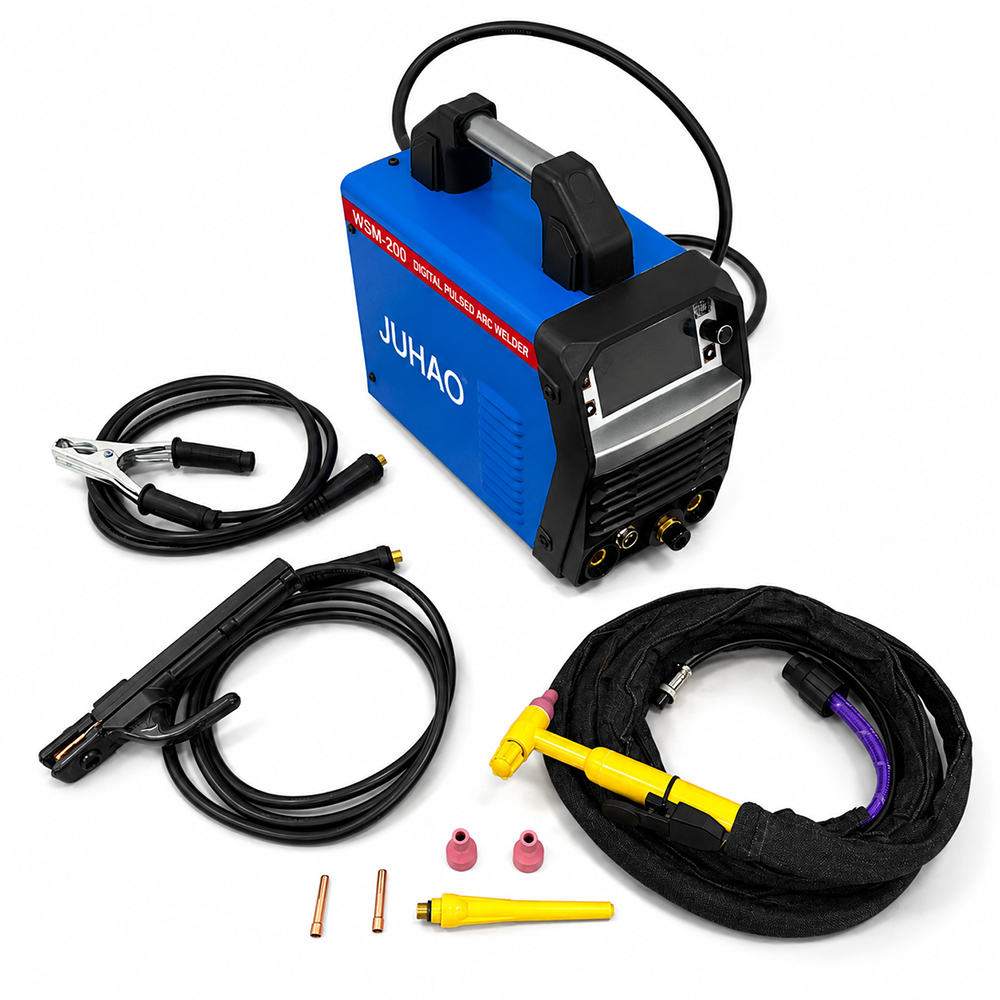

 | ACCESSORIES ☑ 4M WP-17 TIG Torch x1 ☑ 2M Ground Clamp Cable x1 |
Machine Type | TIG, MMA WELDER |
Function | TIG, MMA |

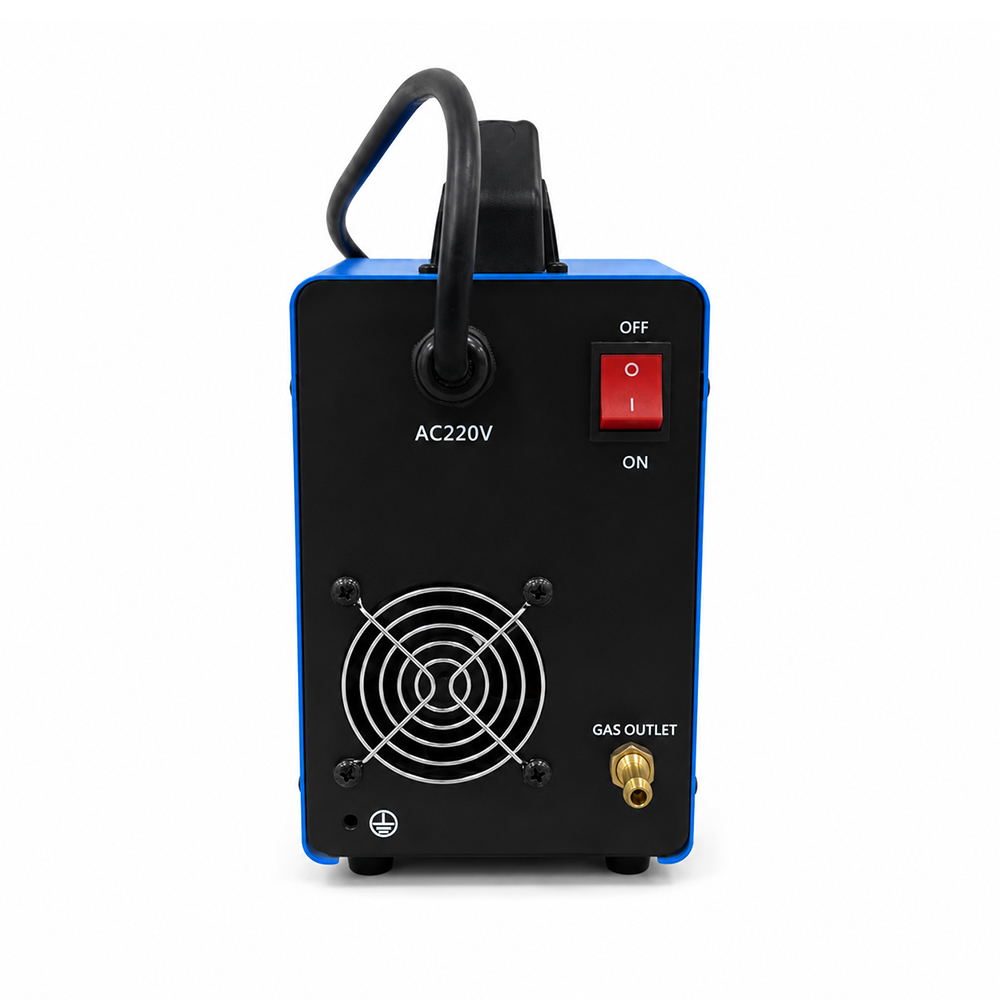

Input Voltage / Frequency | 220V 50HZ/60HZ |
Rated Input Current | 29A |
Output Current | TIG: 10-160A MMA: 20-140A |
Rated Duty Cycle | 40℃ 40% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 65V |
Electrode Diameter | 2.5-4.0MM |
Welding Thickness Range | TIG: 0.3-5MM |
Insulation & Protection Class | F |
Machine Dimensions | 290*130*250MM |
Package Dimensions | 355*160*285MM |
Net Weight | 3.4KG |
Gross Weight | 4.15KG |
 | ◉ TIG and MMA welding Use TIG for controlled welds and MMA for general repair work. ◉ Up to 160 A TIG and 140 A MMA output at 220V Provides a choice of welding currents for different jobs. |
◉ Single-pulse TIG Provides more control over heat input during welding. ◉ Current upslope and downslope Raises and lowers the current gradually for smoother weld starts and finishes. ◉ Adjustable gas post-flow Keeps shielding gas flowing after welding to protect the tungsten and cooling weld. |  |

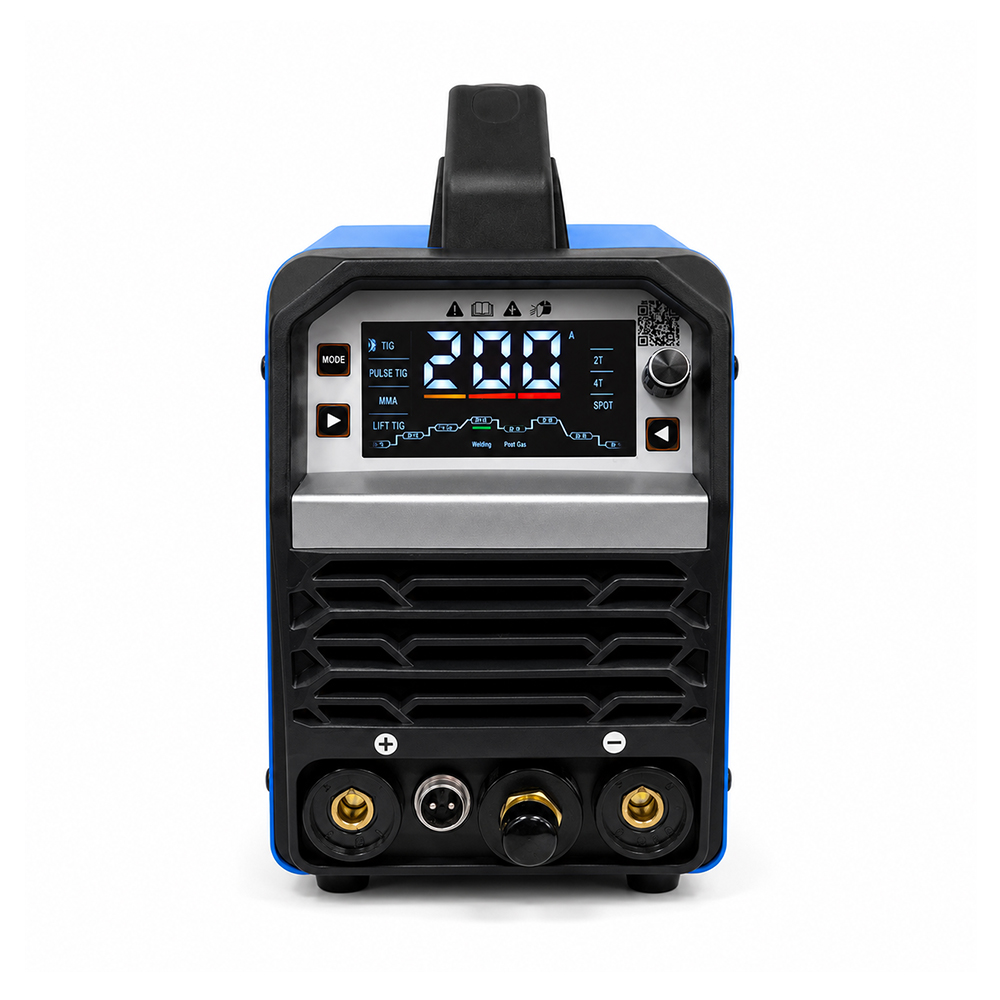

 | ◉ 3.4 kg machine weight Easy to carry between work areas and take to on-site jobs. ◉ Overheat and overcurrent protection Helps protect internal components from overheating and excessive current. ◉ Digital control Welding parameters can be configured at the factory to suit your requirements. |
Q1. What welding processes does the WSM-200 support? A1. The WSM-200 supports both TIG welding and MMA (Stick) welding in one compact inverter power source, making it suitable for general fabrication, maintenance and repair work. Q2. What input power does the WSM-200 require? A2. The machine operates on 220V single-phase, 50/60Hz power with a rated input current of 29A. Q3. What is the welding current range? A3. The TIG output is adjustable from 10A to 160A, while the MMA output ranges from 20A to 140A, allowing users to match the output to different welding applications. Q4. What materials can the WSM-200 weld? A4. The WSM-200 is suitable for TIG and MMA welding on carbon steel, stainless steel and other compatible metals. Material suitability depends on the selected welding process and consumables. Q5. What material thickness can it weld? A5. The rated TIG welding thickness is 0.3–5 mm. Actual welding capacity depends on the material type, joint design, welding technique and operating conditions. Q6. Which electrode sizes are suitable for MMA welding? A6. The recommended electrode diameter is 2.5–4.0 mm when operating on a 220V power supply. Q7. What accessories are included? A7. Standard accessories include a 4 m WP-17 TIG torch and a 2 m ground cable. Additional accessories can be discussed for OEM or customized orders. Q8. Can the WSM-200 be customized for OEM or private-label orders? A8. Yes. OEM and private-label services are available, including logo printing, customized colors, packaging, manuals and other branding options. Q9. Which certificates are available for export? A9. Certificate availability depends on the destination market and product configuration. Please let us know your market requirements so we can confirm the applicable certifications before ordering. Q10. What are the shipping options for international orders? A10. We support shipment by express, air, railway and sea freight. Commercial invoices, packing lists and standard export documents can be provided for customs clearance. |
