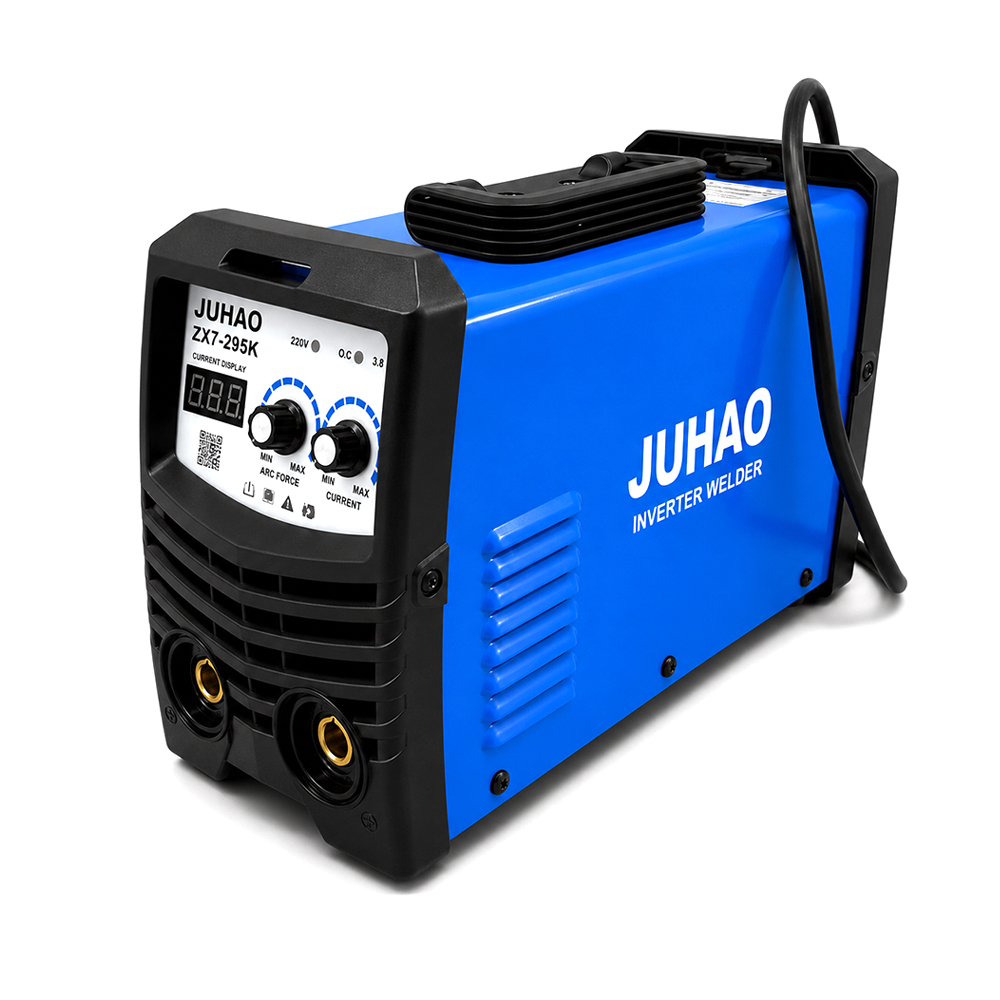

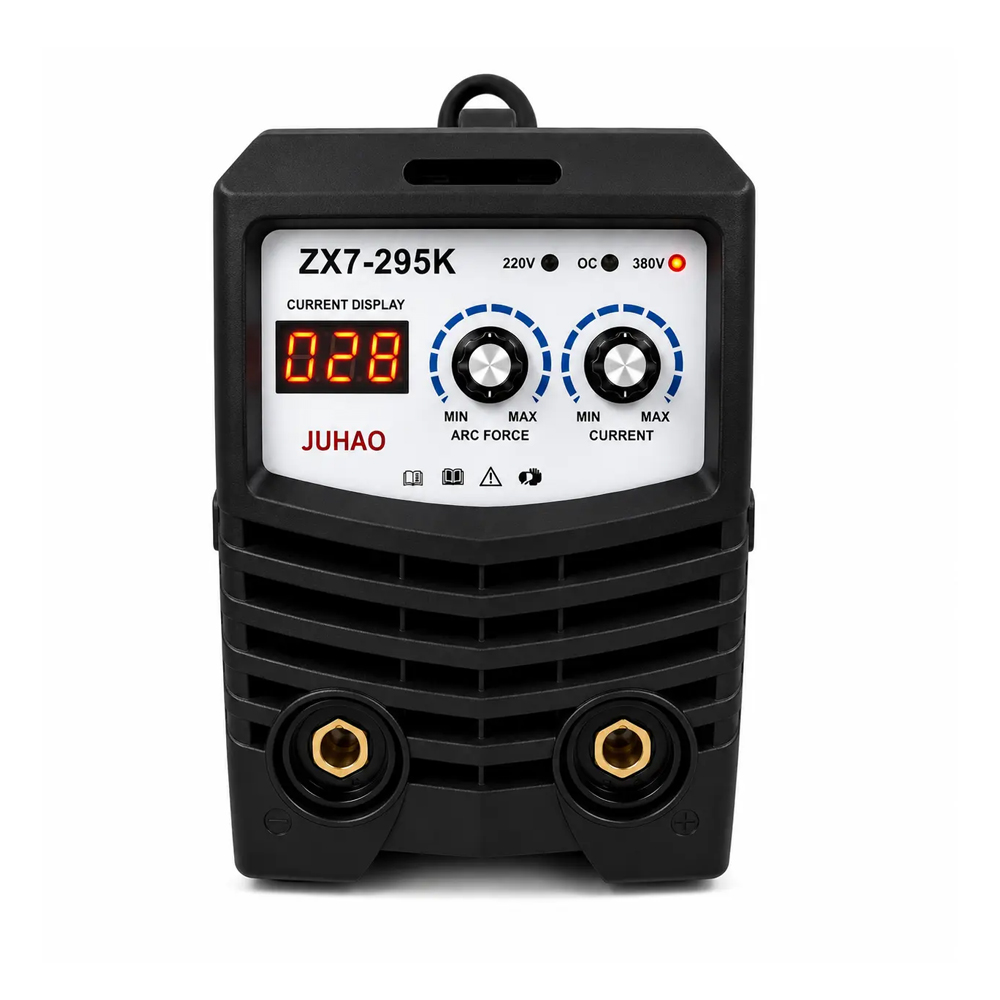

220V/380V 160A Stick Welder, IGBT Inverter, Portable 3.6kg Design
 | THE COMPLETE MACHINE COMES WITH A ONE-YEAR WARRANTY. |  | FOR EACH SHIPMENT, WE WILL PROVIDE SPARE PARTS FREE OF CHARGE, EQUIVALENT TO 1%–2% OF THE TOTAL ORDER VALUE. |

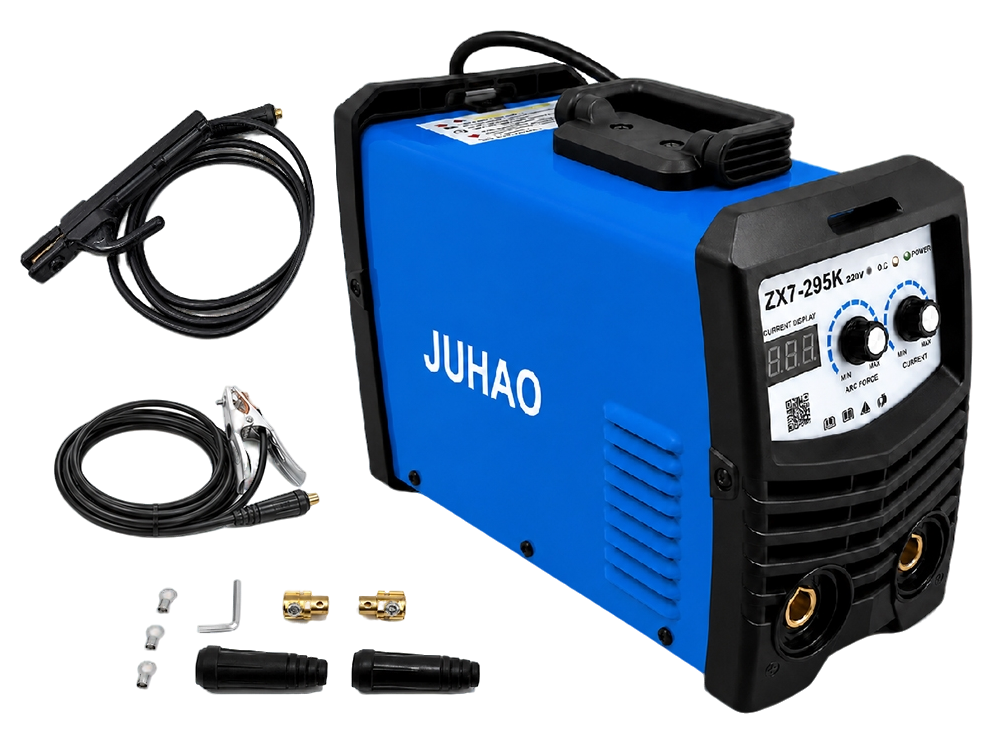

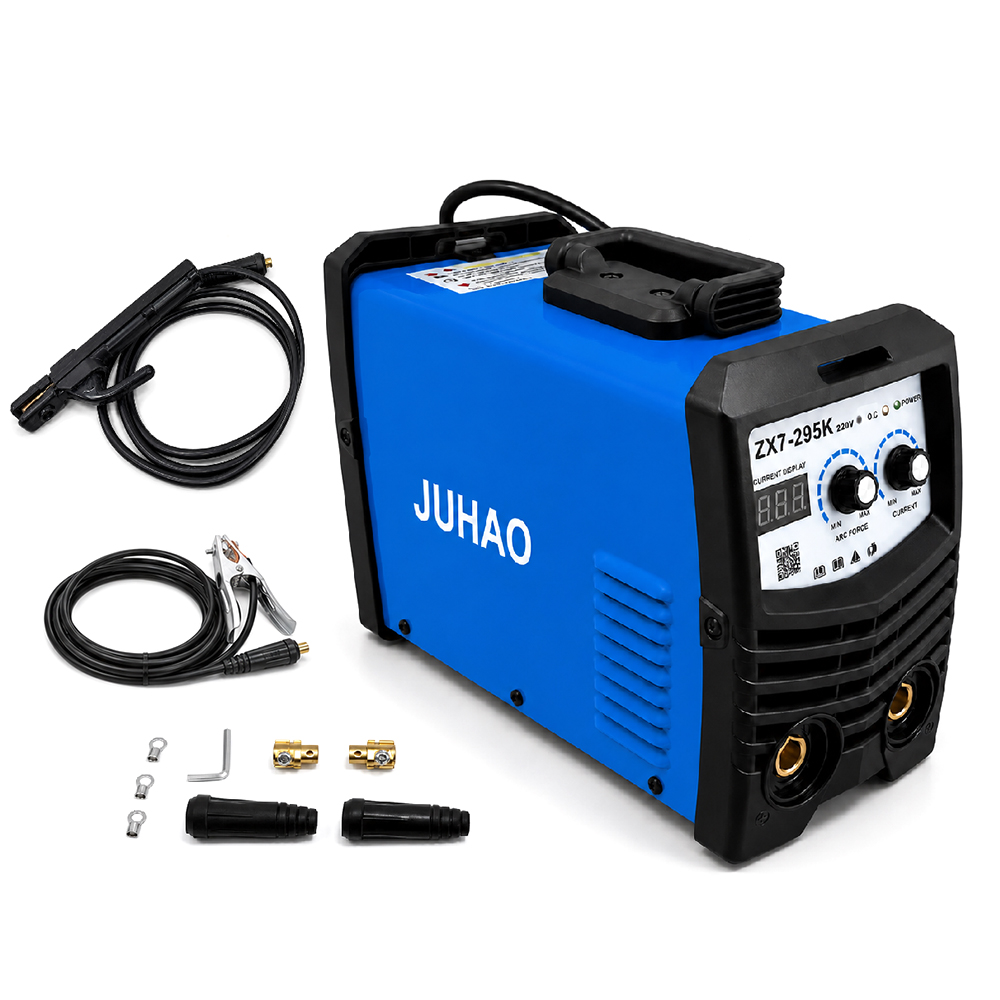

 | ACCESSORIES ☑ 3M 200A Electrode Holder Cable x1 ☑ 2M Ground Clamp Cable x1 |
Machine Type | STICK WELDER |
Function | MMA |

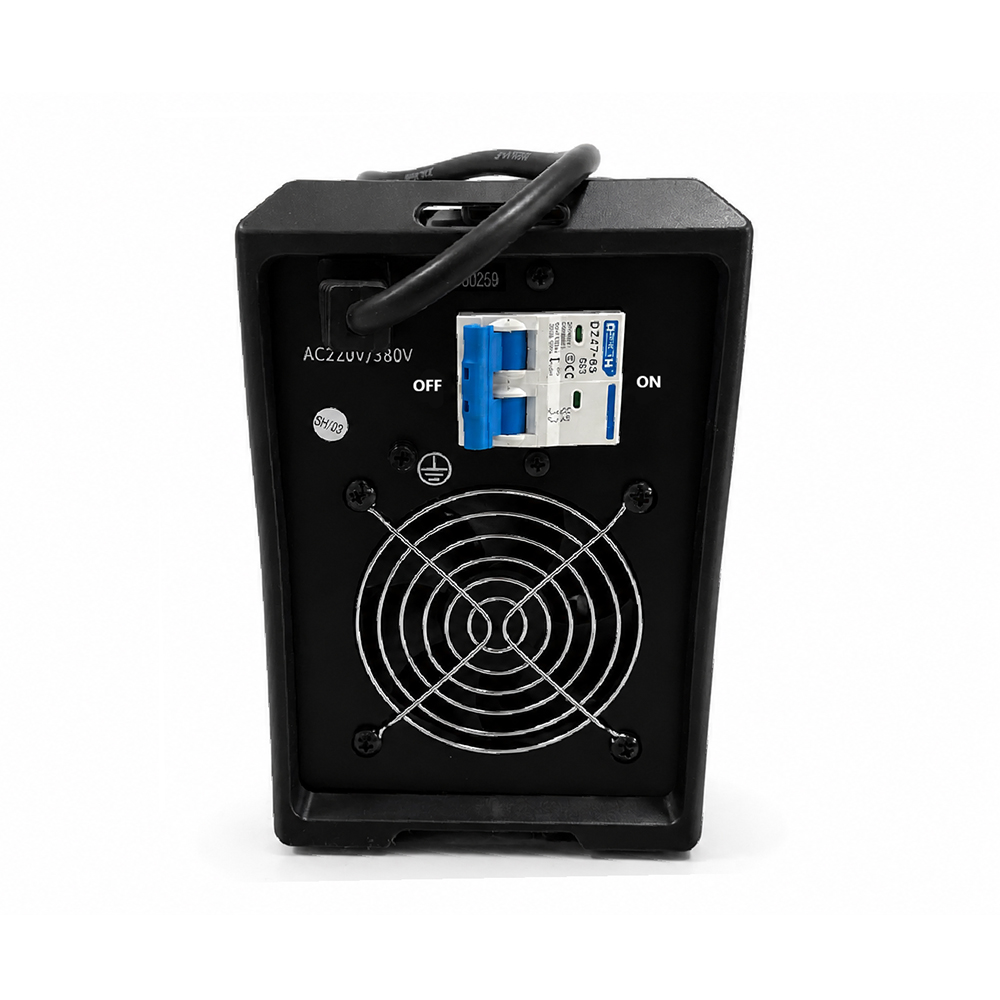

Input Voltage / Frequency | 220V/380V 50HZ/60HZ |
Rated Input Current | 220V:42A 380V:25A |
Output Current | 220V:30-150A 380V:30-160A |
Rated Duty Cycle | 40℃ 40% |
Inverter Technology | IGBT INVERTER |
Efficiency | 85% |
No-load Voltage | 75V |
Electrode Diameter | 2.0-4.0MM |
Welding Thickness Range | 0.8-8MM |
Insulation & Protection Class | F |
Machine Dimensions | 330*140*250MM |
Package Dimensions | 370*160*235MM |

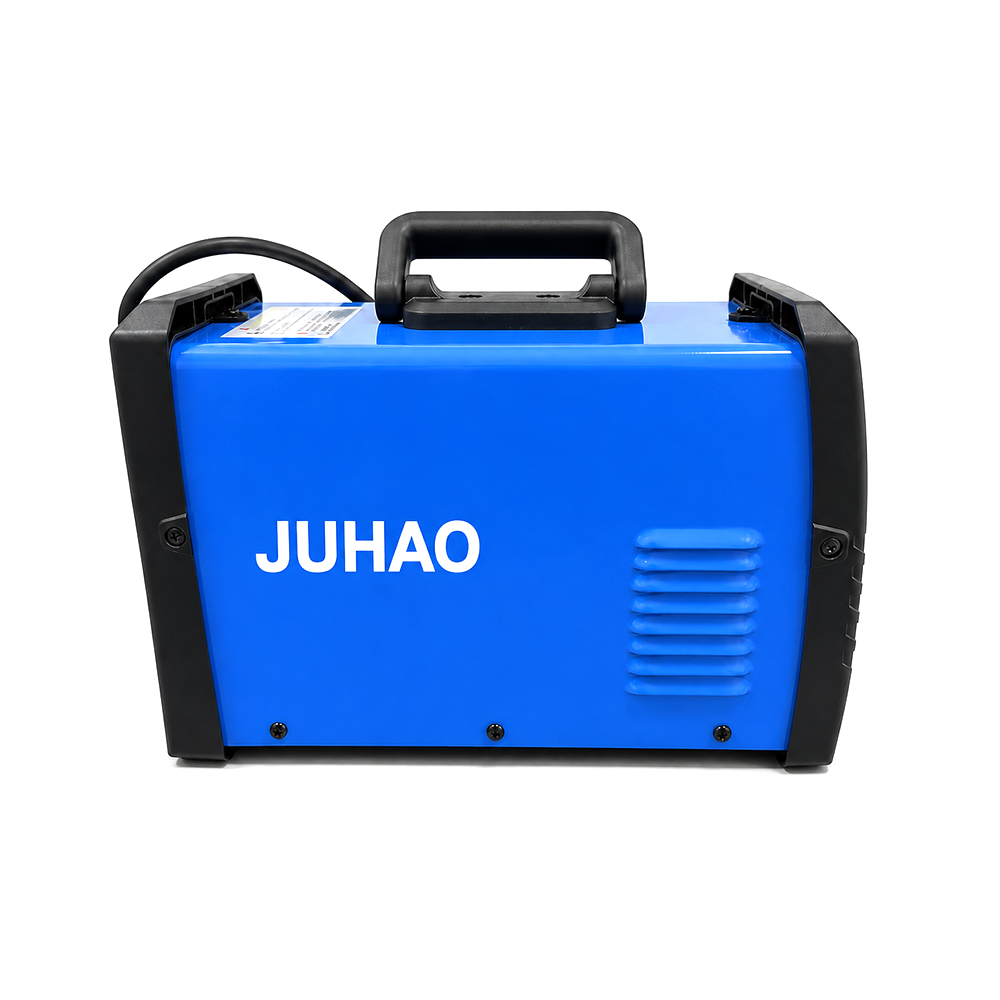

Net Weight | 3.6KG |
Gross Weight | 4.0KG |
 | ◉ 30–150 A at 220 V and 30–160 A at 380 V Adjust the current to suit the electrode size and welding job. ◉ E7018, acid-coated and basic-coated electrodes Offers more electrode choices, including E7018 for jobs that require it. |
◉ 220/380 V input options Works with either supported voltage for use at different job sites. ◉ 3.6 kg machine weight Easy to carry between work areas and take to on-site jobs. |  |
 | ◉ Overheat and overcurrent protection Helps protect internal components from overheating and excessive current. ◉ 3 m electrode cable and 2 m ground cable Provides room to work around the machine without sourcing separate cables. |
Q1. What welding process does this machine support? A1. It supports MMA (stick) welding with coated electrodes, making it ideal for repair, fabrication, maintenance, and construction applications. Q2. What input voltage does it use? A2. The machine supports 220V/380V input at 50/60Hz, making it suitable for workshops, job sites, and industrial environments. Q3. Can it operate on both 220V and 380V power supplies? A3. Yes. The machine is designed to work with both 220V and 380V input power, providing flexibility for different working environments. Q4. What electrode sizes are suitable? A4. The welder supports 2.0mm to 4.0mm electrodes, covering common welding requirements in maintenance, construction, and steel fabrication. Q5. What materials and thicknesses can it weld? A5. It is suitable for welding carbon steel and mild steel from 0.8mm to 8mm thick, depending on electrode selection and welding technique. Q6. Does it require shielding gas? A6. No. MMA stick welding uses coated electrodes and does not require an external shielding gas supply. Q7. What is the duty cycle? A7. The rated duty cycle is 40% at maximum output, allowing stable welding performance during demanding applications. Q8. Is the machine portable? A8. Yes. Weighing only 3.6kg, the compact design makes it easy to carry for site repair, mobile service, and outdoor welding work. Q9. What technology does it use? A9. The machine features advanced IGBT inverter technology for stable arc performance, improved efficiency, and reduced weight. Q10. Do you offer OEM or private label services? A10. Yes. OEM and ODM services are available, including custom branding, packaging, and product customization. Please contact us for MOQ and project details. |
