160A 4-in-1 220V MIG TIG MMA Welder for Workshop Repair
 | THE COMPLETE MACHINE COMES WITH A ONE-YEAR WARRANTY. |  | FOR EACH SHIPMENT, WE WILL PROVIDE SPARE PARTS FREE OF CHARGE, EQUIVALENT TO 1%–2% OF THE TOTAL ORDER VALUE. |

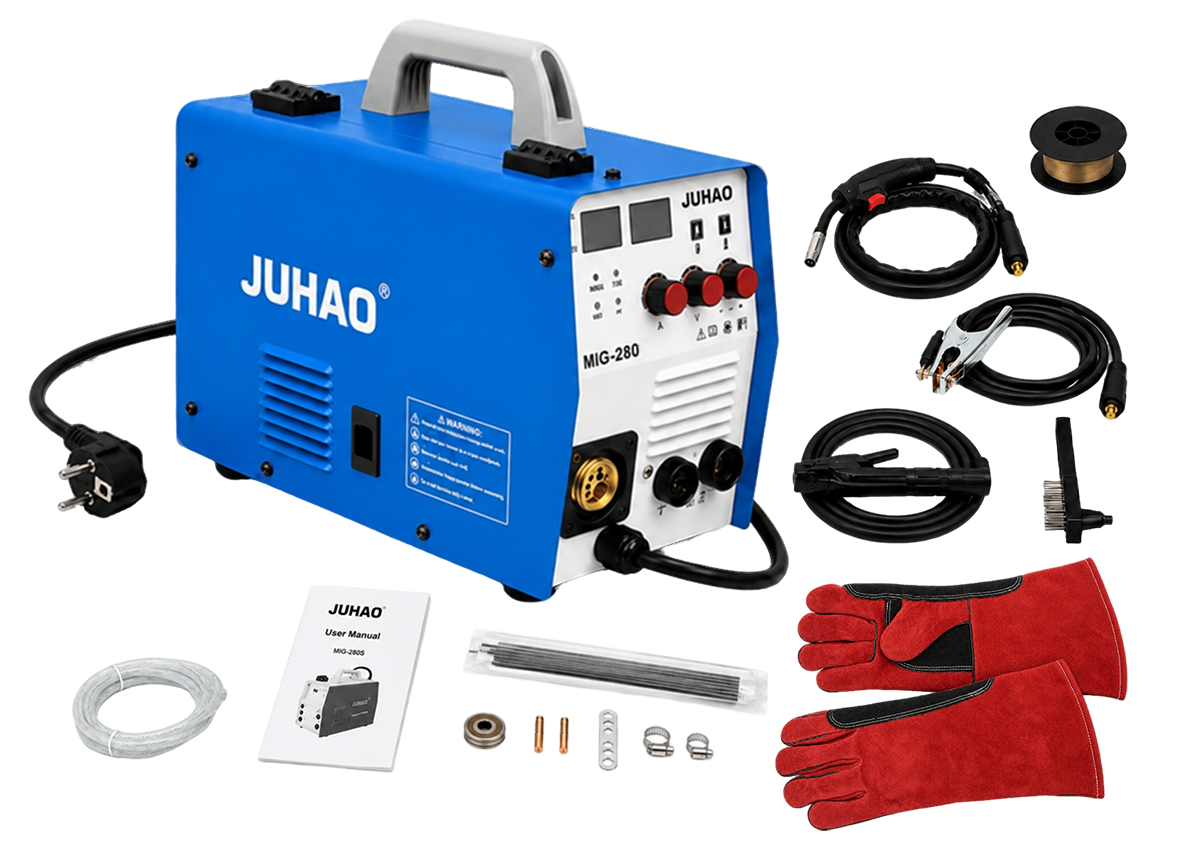

 | ACCESSORIES ☑ 1 Piece 2M Ground Clamp Cable, copper-clad aluminum, 25 mm², 300A, 10/25 quick connector ☑ 1 Piece 3M 500A Electrode Holder Cable, copper-clad aluminum, 25 mm², 10/25 quick connector ☑ Chipping Hammer and Brush ☑ Welding Glasses ☑ 0.45 kg Flux-Cored Wire ☑ 2.5M 15AK Gas-Shielded Torch ☑ 2 Contact Tips ☑ Welding Gloves ☑ 5 Pieces 2.5mm Electrodes |
Machine Type | 4-in-1 MIG TIG MMA Welder |
Function | Gas MIG / Flux MIG / TIG / MMA |
Input Voltage / Frequency | 220V 50/60HZ |
Phase / Board | Single-phase; Single-board |
Rated Input Current | 32A |
Output Current Range | Gas MIG / Flux MIG / MMA / TIG: 20-160A |
Rated Duty Cycle | 60% |
Inverter Technology | IGBT |
Rated Power | 6KW |
No-load Voltage | 65V |
Welding Thickness | 0.3-6MM |
Usable Electrode / Wire Diameter | Electrode 1.6-4.0MM; Wire 0.8-1.0MM |
Insulation & Protection Class | F |
Dimensions | Machine: 400*180*280mm; Package: 470*300*360mm |
Weight | Gross Weight 9.7KG; Machine Weight 5.85KG |
Wire Spool Capacity | Accepts 5 kg wire |
 | ◉ MMA, TIG, gas-shielded and gasless MIG Handles different welding jobs with one machine. ◉ E7018, acid-coated and basic-coated electrodes Offers more electrode choices, including E7018 for jobs that require it. ◉ Hot start, arc force and anti-stick Makes arc starting easier, helps maintain the arc and reduces sticking interruptions. |
◉ Separate current and voltage displays Check both settings at a glance during setup. ◉ Synergic or manual control configurations Choose simpler setup or more hands-on adjustment when ordering. ◉ 2T/4T trigger modes Use trigger-hold control for short jobs or latched control for longer runs. ◉ Digital control Welding parameters can be configured at the factory to suit your requirements. |  |
 | ◉ Overheat and overcurrent protection Helps protect internal components from overheating and excessive current. ◉ Reinforced carry handle Provides a comfortable, sturdy grip for carrying the machine. ◉ Torch, cables and welding wire included Reduces the number of starter accessories to buy separatel |
Q1. What welding processes does MIG-280 support? A1. It supports Gas MIG, Flux MIG, TIG and MMA welding, giving users four processes in one machine. Q2. What input voltage does this model use? A2. MIG-280 is designed for 220V single-phase input at 50/60Hz. Q3. What is the output current range? A3. The output current range is 20-160A across Gas MIG, Flux MIG, MMA and TIG modes. Q4. What wire sizes can it use? A4. It supports 0.8-1.0mm welding wire for MIG welding applications. Q5. What electrode sizes are suitable? A5. It supports 1.6-4.0mm electrodes for MMA welding. Q6. Does it accept 5 kg wire spools? A6. Yes. MIG-280 accepts 5 kg wire spools, helping reduce spool changes during longer jobs. Q7. Is this machine suitable for beginners? A7. Yes. Synergic adjustment helps simplify setup, while manual adjustment gives experienced users more control. Q8. What accessories are included? A8. The package includes ground clamp cable, electrode holder cable, 15AK torch, flux-cored wire, contact tips, gloves, glasses, chipping hammer and electrodes. Q9. What protection functions are included? A9. The machine includes overheat and overcurrent protection to help protect internal components during abnormal operation. Q10. Who is the ideal buyer for MIG-280? A10. It is suitable for DIY users, repair shops, farm maintenance, light fabrication workshops and distributors needing a versatile 4-in-1 welder. |
